(90.120.05[03]) - VAR - 747770 - SEAT, MECHANICAL SUSPENSION - D9007

Запчасти Case 580SN WT (90.120.05[03]) - VAR - 747770 - SEAT, MECHANICAL SUSPENSION - D9007 (90) - PLATFORM, CAB, BODYWORK AND DECALS

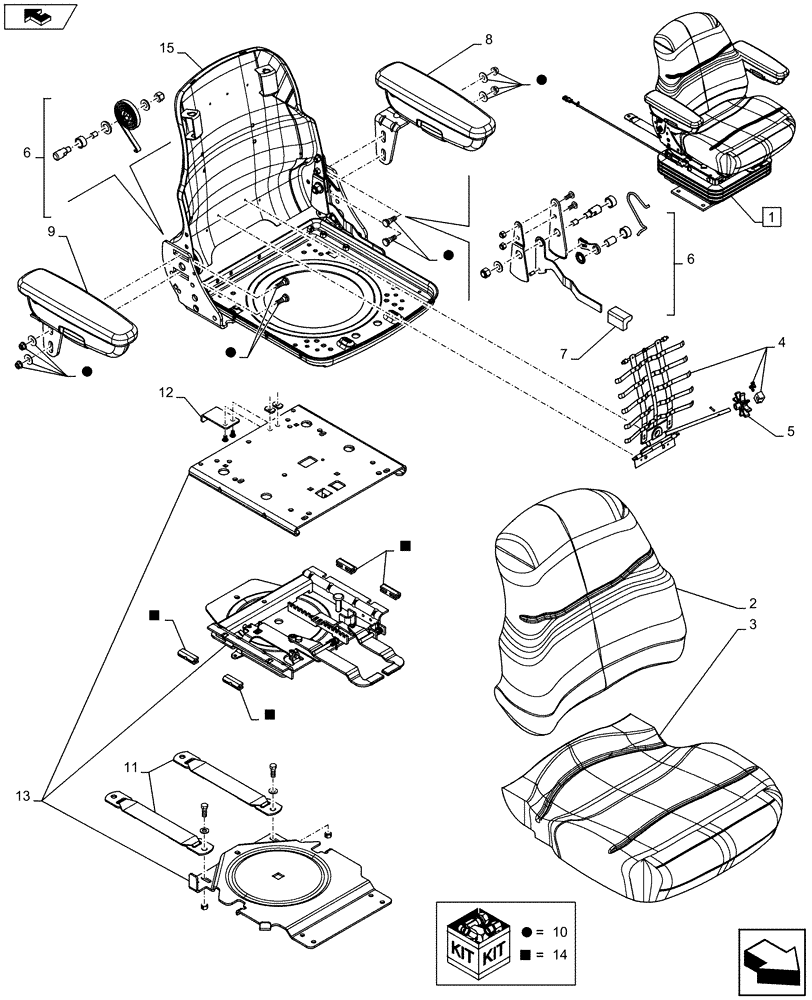

Схема запчастей Case 580SN WT - (90.120.05[03]) - VAR - 747770 - SEAT, MECHANICAL SUSPENSION - D9007 (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
12
9
6
2
10
11
7
14
14
10
15
10
4
14
10
14
3
13
8
6
home
1
14
10
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84557472

SEAT

Assy, Incl 2 - 15

1шт.

See Seat Components also in Figures 90.120.05 (04), 55.512.46

1шт.

2

87308159

SEAT CUSHION

1шт.

3

87308158

SEAT CUSHION

1шт.

4

87308130

SEAT BACK ADJUST DEV

1шт.

5

87037462

SEAT BACK ADJUST DEV

1шт.

6

86994165

SEAT ACCESSORY

1шт.

7

87416475

KNOB

1шт.

8

87308153

ARMREST

1шт.

9

87308152

ARMREST

1шт.

10

87308154

SEAT ACCESSORY

2шт.

11

87308128

SEAT ACCESSORY

1шт.

12

84174986

BRACKET

1шт.

13

87308131

SEAT ACCESSORY

1шт.

14

300680A1

KIT

1шт.

15

87308157

SEAT BACK

1шт.
