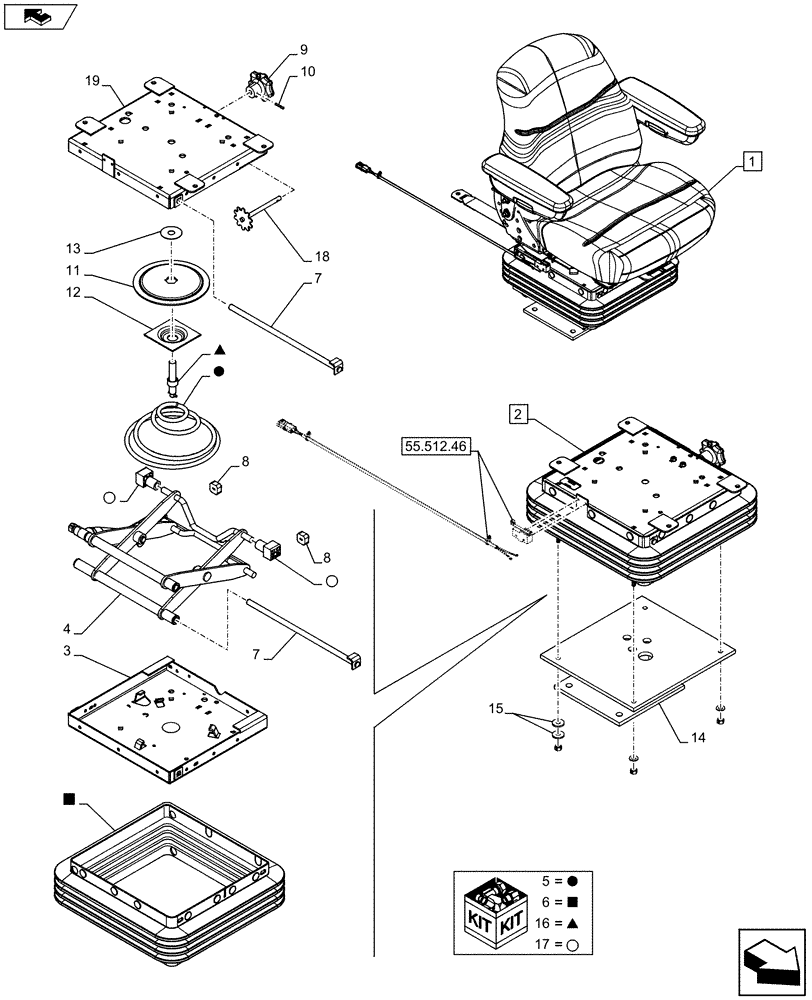

Запчасти Case 580SN WT (90.120.05[02]) - VAR - 747770 - SEAT - MECHANICAL SUSPENSION - C9007 (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case 580SN WT - (90.120.05[02]) - VAR - 747770 - SEAT - MECHANICAL SUSPENSION - C9007 (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/649796.png)
55.512.46
3
5
7
9
2
5
11
7
19
6
10
17
16
17
16
14
15
8
13
18
1
12
6
6
16
4
8
5
17
home
17
№
Артикул
Название
Примечание
Количество
1
84276105
DRIVER SEAT
Assy, Incl 2 - 19
1шт.
2
87308141
SEAT SUPPORT
Assy, Incl 3 - 13, 16 - 19
1шт.
3
87308142
SEAT SUPPORT
Not Shown
1шт.
4
87308144
SEAT SUPPORT
1шт.
5
87308146
SEAT ACCESSORY
Not Shown
1шт.
6
87308147
SEAT ACCESSORY
Not Shown
1шт.
7
112884A1
SHAFT,368mm L
2шт.
8
A45054
BUMPER,Neoprene
2шт.
9
123969A1
SEAT ACCESSORY
1шт.
10
38-11016
LOCK PIN,5/32" x 1", Slotted
1шт.
11
A45505
GEAR
1шт.
12
A45504
SPRING WASHER
1шт.
13
87308145
THRUST WASHER
1шт.
14
87555125
PEDESTAL
1шт.
15
87655043
WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM
4шт.
16
87308148
SEAT ACCESSORY
1шт.
17
1977725C1
SLIDER
Not Shown
1шт.
18
A45513
GEAR
Not Shown
1шт.
19
87308143
SEAT SUPPORT
Not Shown
1шт.
Выбрано товаров: 19
