(90.108.10) - VAR - 423056, 747882, 747883 - DECALS

Запчасти Case 580SN WT (90.108.10) - VAR - 423056, 747882, 747883 - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

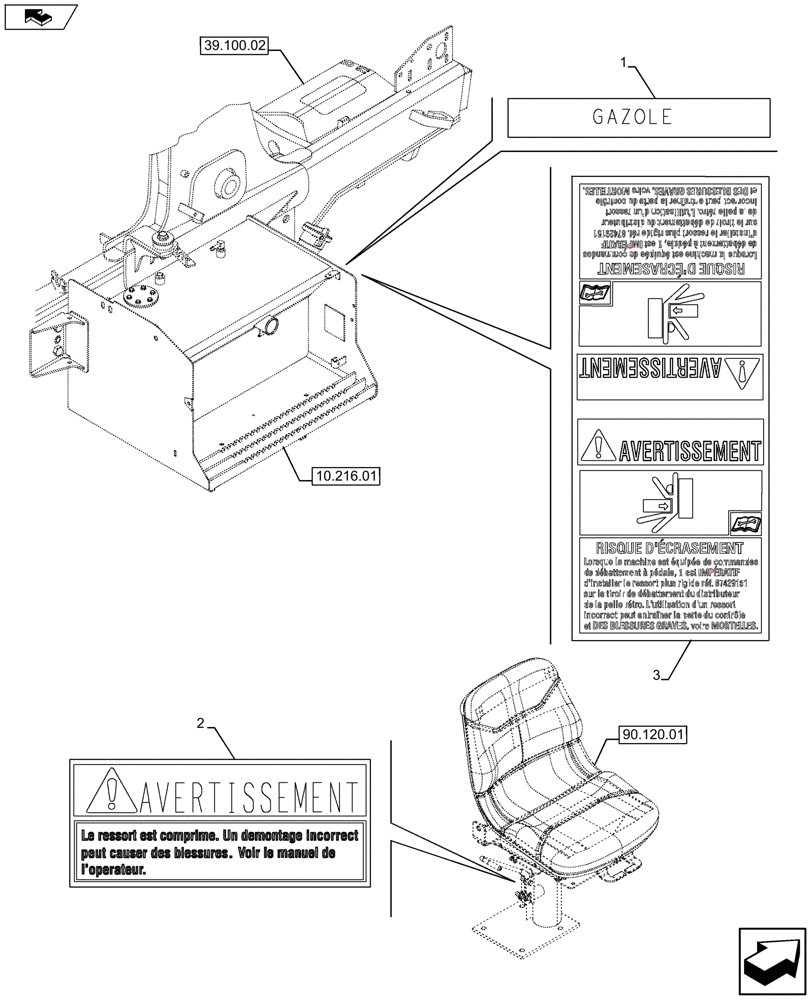

Схема запчастей Case 580SN WT - (90.108.10) - VAR - 423056, 747882, 747883 - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.100.02
10.216.01
3
90.120.01
home
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

398668A1

DECAL

Diesel Fuel, Franch Canadian

1шт.

1

E155859

DECAL

Diesel Fuel, Portuguese

1шт.

1

398667A1

DECAL

Diesel Fuel, Spanish

1шт.

2

398671A1

DECAL

Seat Spring, French Canadian

1шт.

2

148017A1

DECAL

Seat Spring, Portuguese

1шт.

2

398670A1

WARNING DECAL

Seat Spring, Spanish

1шт.

3

87493418

DECAL,50mm x 21mm H

Ultra Low Sulfur Diesel Fuel

1шт.
