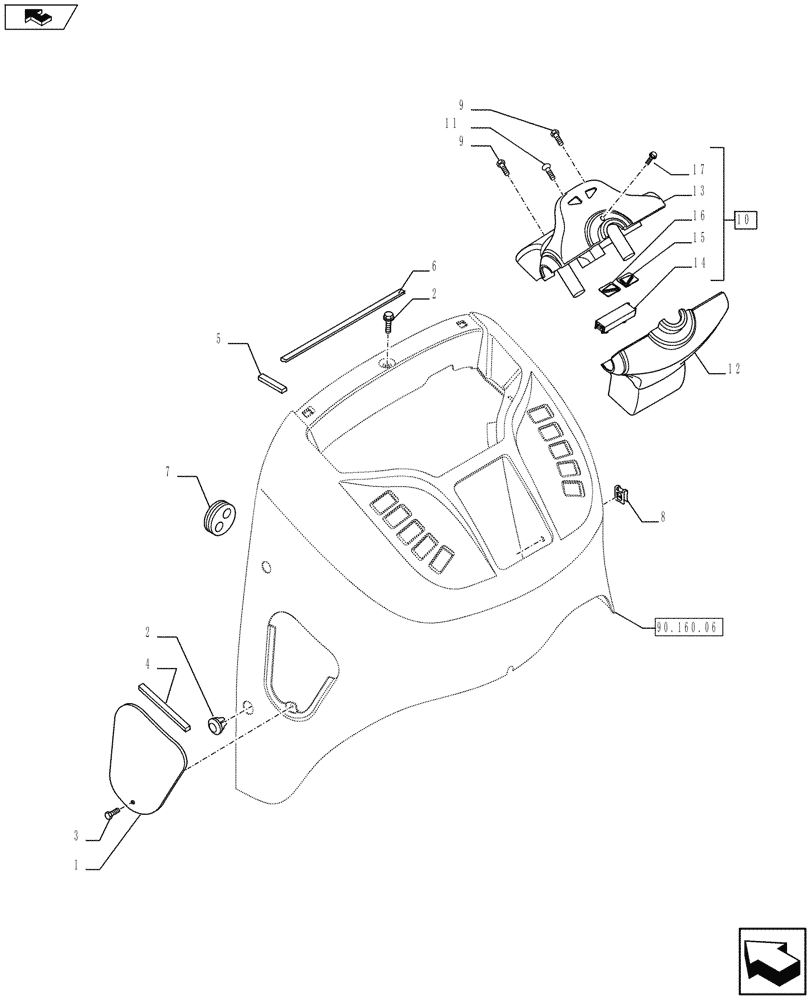

Запчасти Case 580SN WT (90.100.09[01A]) - INSTRUMENT PANEL, FRONT - COVERS - D7360 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

360244A1

COVER

1шт.

2

87310152

BOLT,M6 x 16 Full SST BLO

6шт.

3

87310086

CAPTIVE WASHER SCREW,Sl Pan Hd, #10 - 16 x 17mm, Stainless Steel

1шт.

4

414572A1

STRIP

1шт.

5

414033A1

STRIP,60mm

4шт.

6

414034A1

STRIP,330mm

1шт.

7

87637384

GROMMET,35mm OD, 9mm ID, 12mm L

1шт.

8

833-40406

NUT,M6, U

4шт.

9

87310124

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2", SST

4шт.

10

47605302

COVER ASSY

Assy, Incl 13 - 17

1шт.

11

87540980

SCREW,Phillips Drive, Pan HD, #10 - 16 x 1/2", SST

1шт.

12

360243A2

COVER

1шт.

13

NSS

NOT SOLD SEPARAT

Cover, Incl in 10

1шт.

14

303465A2

LAMP,12V, 2W

1шт.

15

303466A1

SYMBOLS

1шт.

16

303467A1

SYMBOLS

1шт.

17

373693A1

SCREW,Torx, #8 - 18 x 7/16"

1шт.
