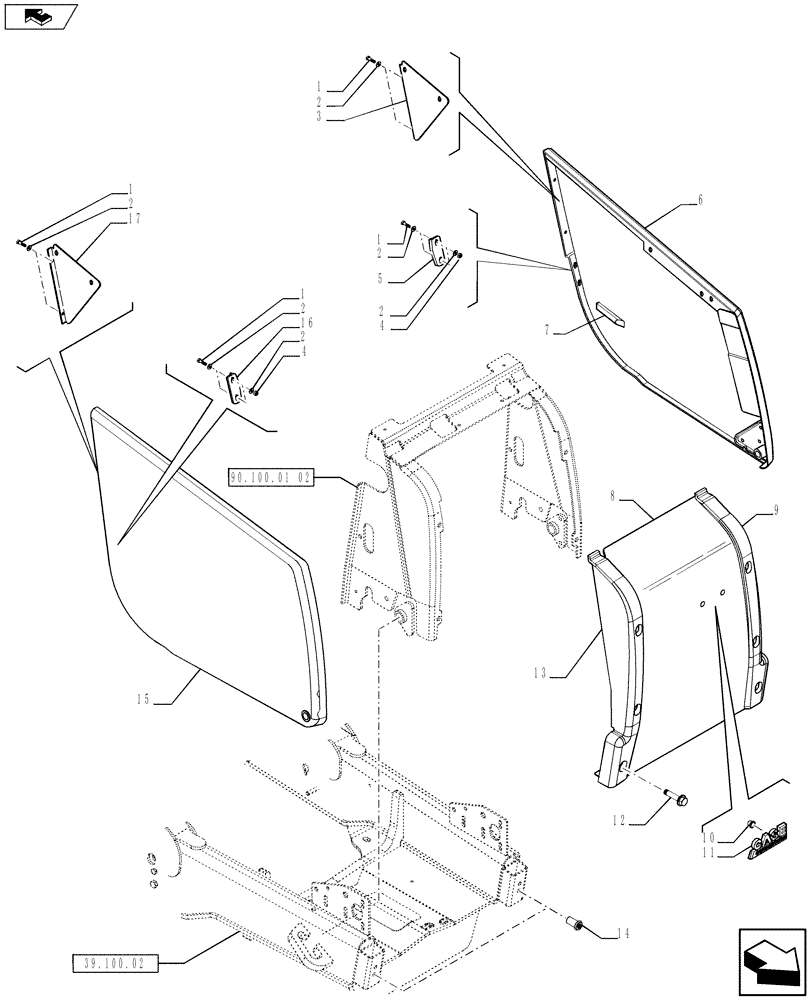

Запчасти Case 580SN WT (90.100.01[03]) - HOODS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

8шт.

2

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

12шт.

3

362609A1

SUPPORT

1шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

5

D143714

SUPPORT

1шт.

6

87444148

PANEL, SIDE

1шт.

7

183168A1

HANDLE

1шт.

8

87585167

RADIATOR GRILLE

1шт.

9

87719497

BUMPER

1шт.

10

131-431

PUSH-ON NUT,Self, Threading, 1/4"

1шт.

11

84478049

EMBLEM

Emblem Case Logo Also Order #8

1шт.

12

392828A2

BOLT,M10-1.5 x 40mm L W/CAPTURED WASHER

6шт.

13

87719495

BUMPER

1шт.

14

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

2шт.

15

87444147

PANEL, SIDE

1шт.

16

D143715

SUPPORT

1шт.
