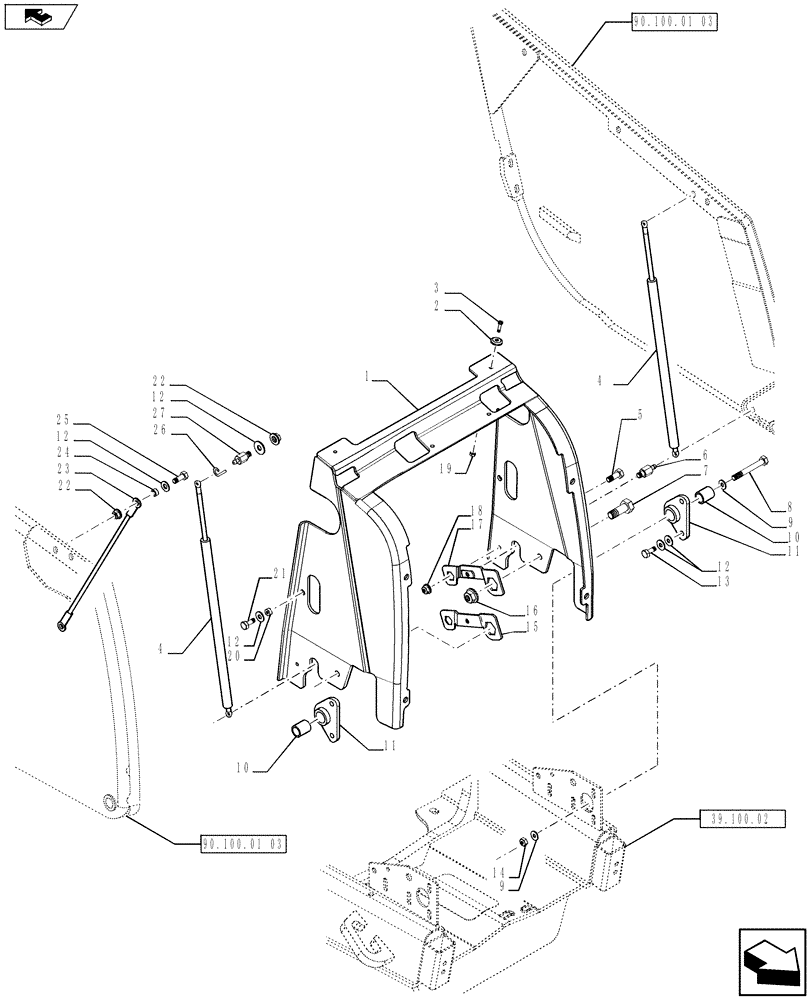

Запчасти Case 580SN WT (90.100.01[02]) - HOODS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84393366

WRAPPER

1шт.

2

109879A1

SPACER,5.5mm ID x 30mm OD

2шт.

3

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

2шт.

4

114980A1

GAS STRUT

2шт.

5

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

6

87561131

BALL JOINT,M10 x 1.5mm x 48mm L

2шт.

7

614-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 8.8, Full Thd

2шт.

8

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

9

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

10

87412060

TUBE,13.5 mm ID x 25.36 mm OD x 76 mm L

2шт.

11

87606502

PIVOT

2шт.

12

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

11шт.

13

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

14

829-1412

NUT,M12, Cl 10.9

2шт.

15

87725883

RETAINER

1шт.

16

829-2420

FLANGE NUT,M20 x 2.5, Flg, Cl 10

2шт.

17

87725886

RETAINER

1шт.

18

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

2шт.

19

231-14109

LOCK NUT,#10-24, GB

2шт.

20

396605A1

SPACER,10.31mm ID x 15.88mm OD x 10mm L

1шт.

21

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

22

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

23

144908A2

CABLE,638mm L

1шт.

24

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

1шт.

25

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

26

F44883

CLIP,DIN 71805 - S10

4шт.

27

139363A1

BALL JOINT,M10 x 1.5mm x 42mm L

2шт.
