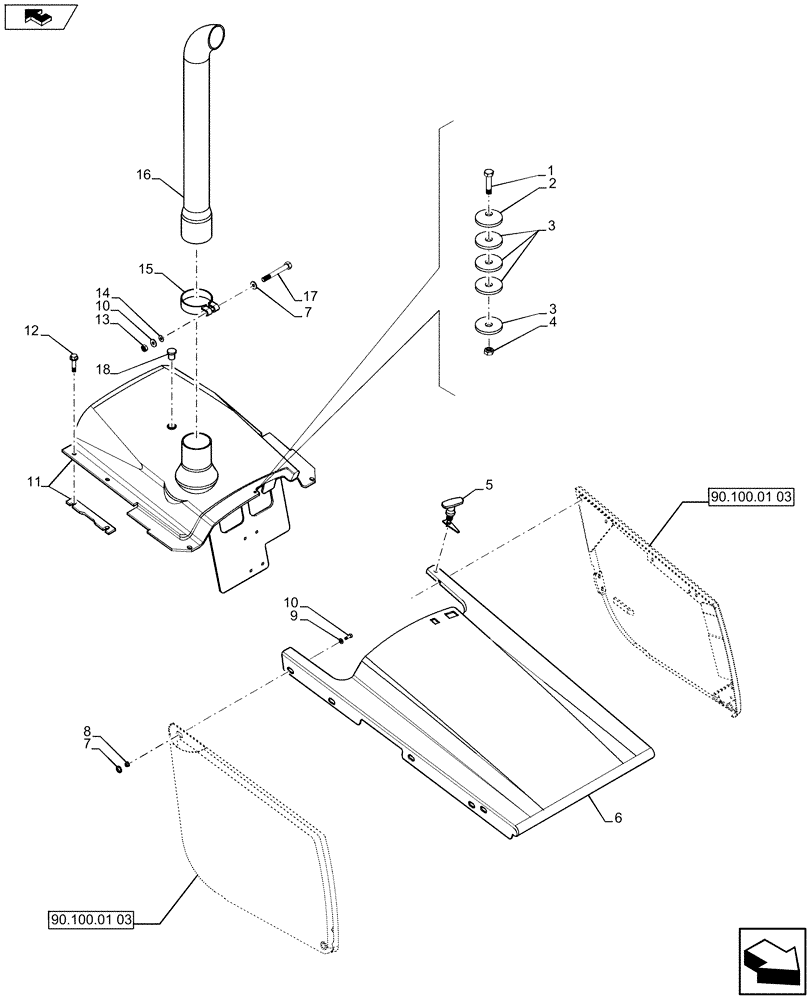

Запчасти Case 580SN WT (90.100.01[01]) - HOODS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

440-11014

SCREW,Cross Pan Hd, #10-24 x 7/8"

3шт.

2

109879A1

SPACER,5.5mm ID x 30mm OD

3шт.

3

185325A1

SPACER,5.5mm ID x 30mm OD x 2mm L

10шт.

4

231-14109

LOCK NUT,#10-24, GB

3шт.

5

175599A1

LATCH

1шт.

6

87594903

ENGINE HOOD

1шт.

7

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

6шт.

8

D140267

PLUG,30.16mm OD

2шт.

9

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

8шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

6шт.

11

84541174

PLATE

1шт.

12

392828A2

BOLT,M10-1.5 x 40mm L W/CAPTURED WASHER

4шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

14

892-11010

LOCK WASHER,M10

1шт.

15

87437804

PIPE CLAMP,94mm ID

1шт.

16

87309656

EXHAUST SYSTEM PIPE

1шт.

17

614-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

1шт.

18

353-403

PLUG,Dome, .437" hole, Nylon

1шт.
