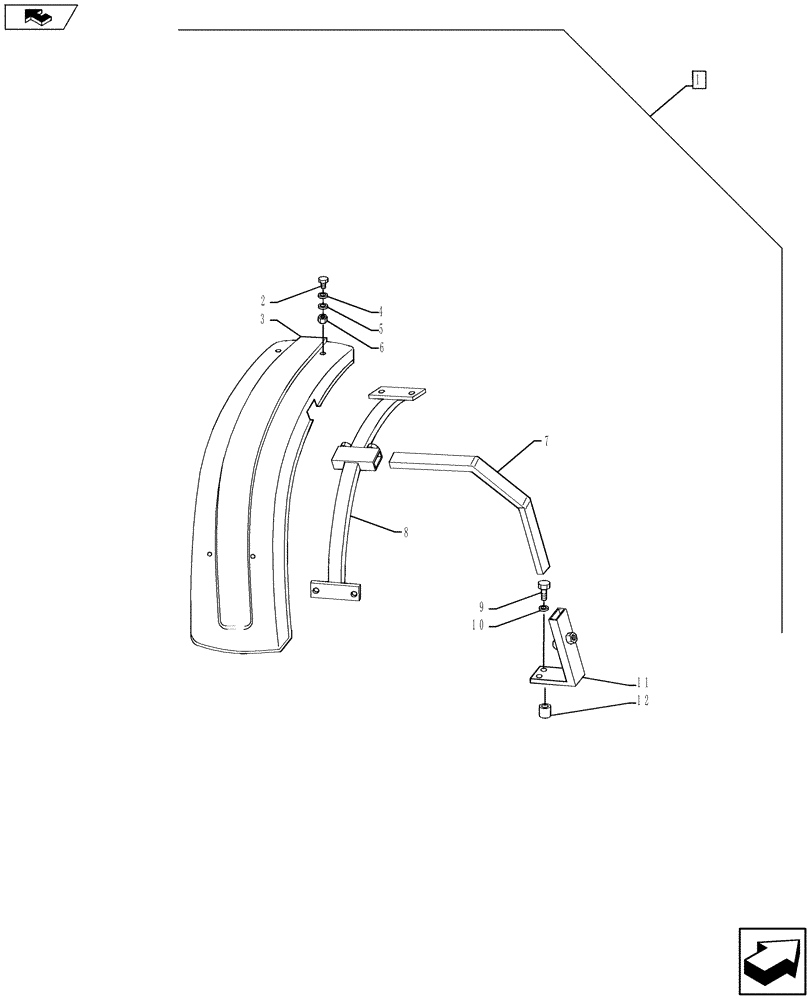

Запчасти Case 580SN WT (88.090.07) - DIA KIT, FRONT FENDERS (88) - ACCESSORIES

1

85826131

KIT

Front Fenders, Incl 2 -12

1шт.

2

87302831

SCREW,M6 x 20mm

8шт.

3

9968885

FRONT FENDER

LH

1шт.

3

9968886

FRONT FENDER

RH

1шт.

4

11194779

BELLEVILLE WASHER,Belleville, M6.4

8шт.

5

11193279

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD

8шт.

6

12574211

NUT,M6 x 1, Cl 8

8шт.

7

85826132

SUPPORT

2шт.

8

9968884

SUPPORT

2шт.

9

11119121

BOLT,Hex, M16 x 60, 8.8

6шт.

10

14496901

WASHER,17mm ID x 30mm OD x 3mm Thk

6шт.

11

85826133

SUPPORT

LH

1шт.

11

85826134

SUPPORT

RH

1шт.

12

87348002

SPACER,17mm ID x 25mm OD x 30mm L

6шт.
