Запчасти Case 580SN WT (88.090.06) - DIA KIT, RETRO FIT, HYDRAULIC COUPLER (88) - ACCESSORIES

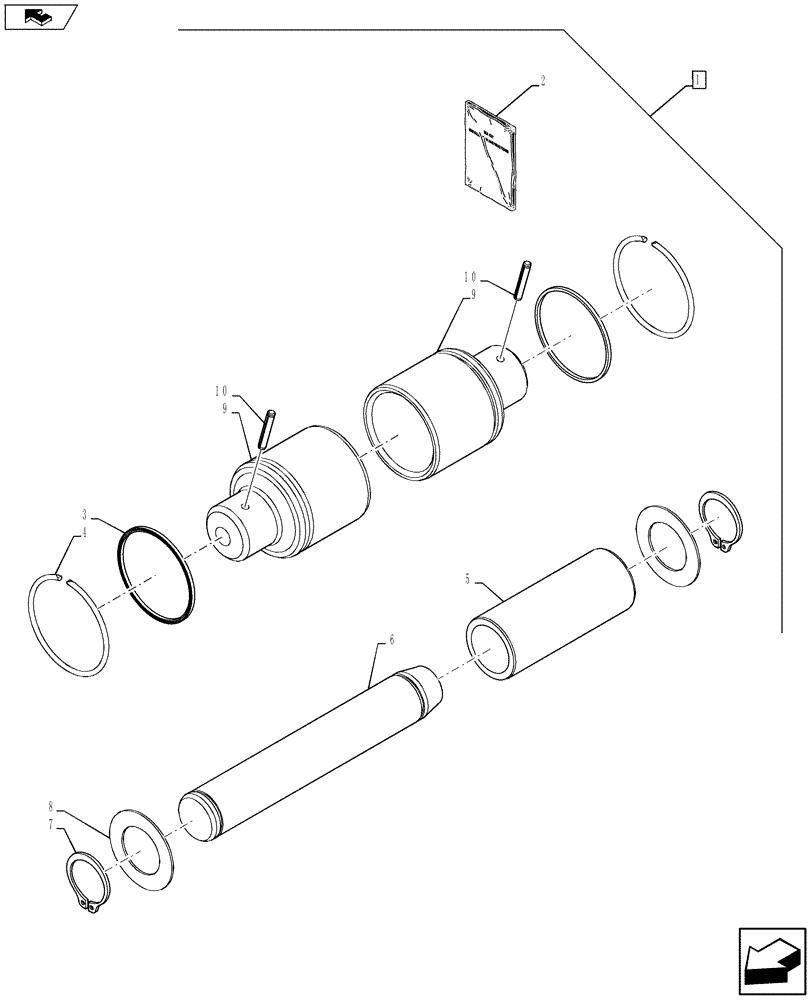

Схема запчастей Case 580SN WT - (88.090.06) - DIA KIT, RETRO FIT, HYDRAULIC COUPLER (88) - ACCESSORIES
2
1
3
8
10
9
7
5
9
6
home
4
10

Артикул

Название

Примечание

Количество

1

84304990

CONSTRUCTION DIA

Retro Fit, Hydraulic Coupler, Incl 2 - 10, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84399660

INSTRUCTION

1шт.

3

434891A1

WIPER SEAL

2шт.

4

406624A1

RING,81.38mm OD, Ext

2шт.

5

84300835

SLEEVE,38.3mm ID x 50mm OD x 125mm L

1шт.

6

D37614

PIN,38mm Od x 246mm L

1шт.

7

D25279

SNAP RING,M35, Int

2шт.

8

D143324

WASHER,38.15mm ID x 64mm OD x 1.7mm Thk

2шт.

9

400932A4

PIN,76.2mm OD x 114.5mm L

2шт.

10

135-1233

GROOVED PIN,5.56mm OD x 38.1mm L

2шт.

Выбрано товаров: 11
