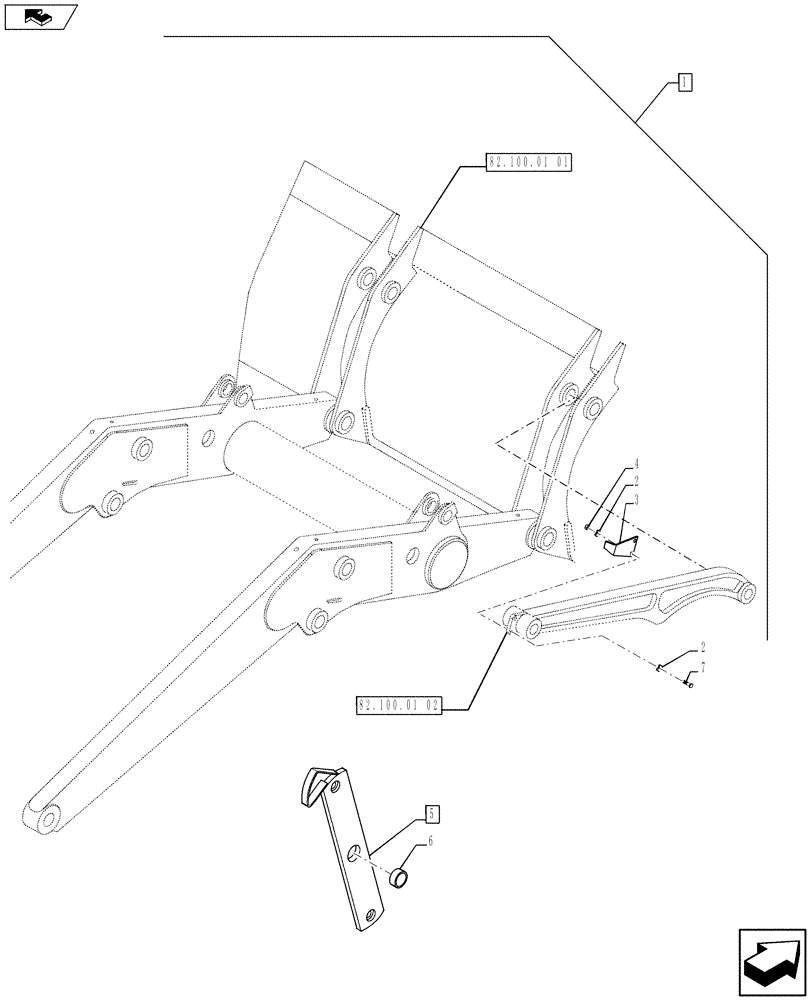

Запчасти Case 580SN WT (88.082.06[06]) - DIA KIT, LOADER BUCKET 4-IN-1 (93 IN) (88) - ACCESSORIES

1

84571018

BUCKET

93 in 4-in-1, Incl 2 - 7, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure,See Ref. 88.082.06 [01] to 88.082.06 [05], 88.082.06 [07]

1шт.

2

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

3

250851A1

POINTER

1шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

5

84301392

LINK BLOCK

Assy, Incl 6

1шт.

6

D151034

BUSHING,50.23mm ID x 60mm OD x 25.4mm L

1шт.

7

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.
