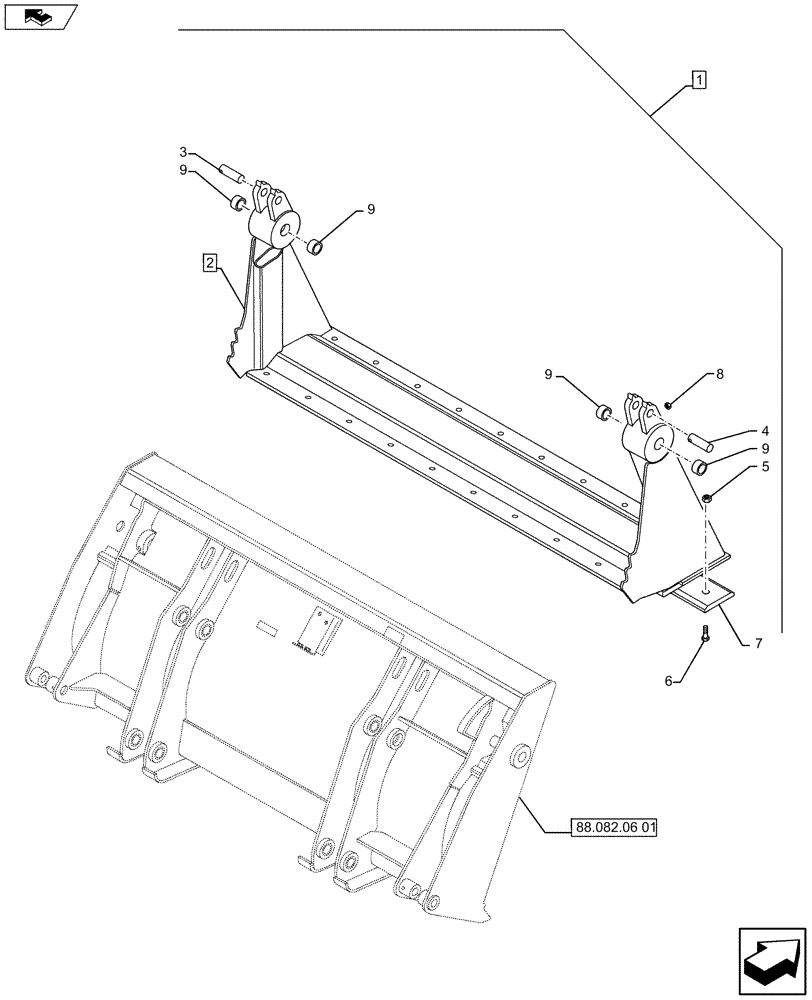

Запчасти Case 580SN WT (88.082.06[02]) - DIA KIT, LOADER BUCKET 4-IN-1 (93 IN) (88) - ACCESSORIES

1

84571018

BUCKET

93 in 4-in-1, Incl 2 - 9, Serial Range: -`0

1шт.

See Ref. 88.082.06 [01], 88.082.06 [03] to 88.082.06 [07],Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

144210A1

CLAMSHELL BUCKET

Assy, Incl 3 - 4

1шт.

3

D51389

PIVOT,47.5mm ID, 31.95mm ID

LH

1шт.

4

D51390

PIVOT,47.5mm ID, 31.95mm ID

RH

1шт.

5

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

20шт.

6

29-1012

NUT,3/4"-10, G8

20шт.

7

142301A1

CUTTING EDGE,Bolt On, 10 Holes, 19mm W x 2362mm L

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

9

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

4шт.
