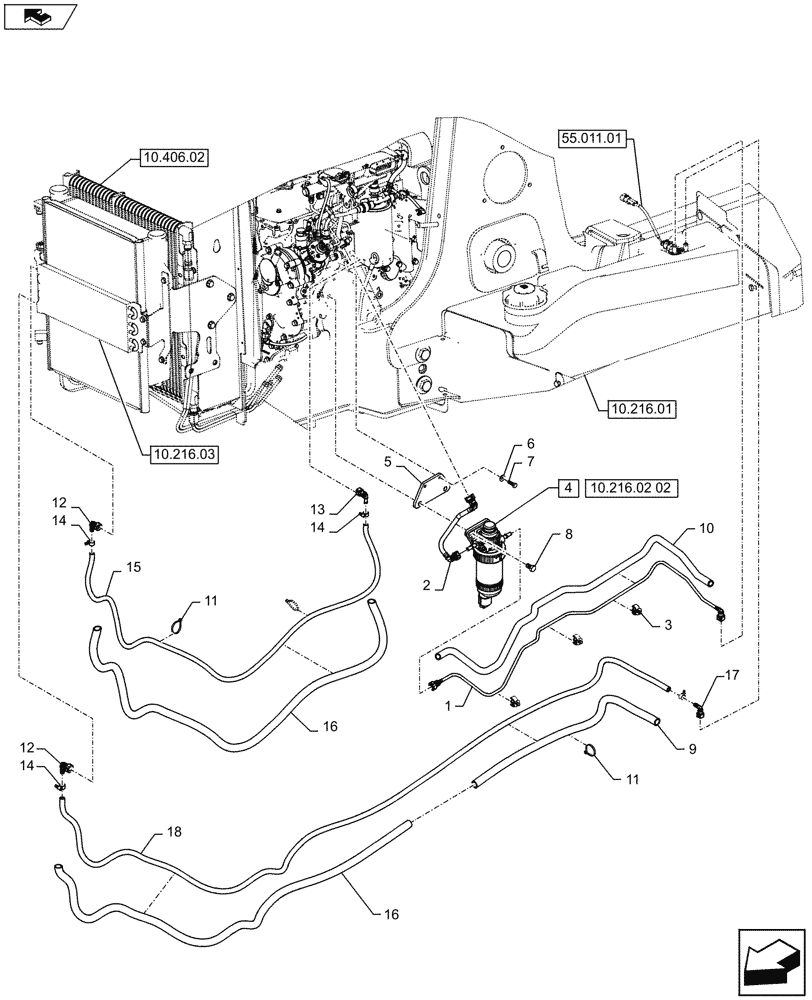

Запчасти Case 580SN WT (10.216.02[01A]) - FUEL LINES, RESERVOIR - D7476 (10) - ENGINE

1

84391638

RIGID TUBE

Suction Tank To filter

1шт.

2

84391629

RIGID TUBE

Suction Filter To Engine

1шт.

3

84298475

HOSE CLAMP

Dual Hose

3шт.

4

84392298

FILTER

Assy

1шт.

5

47432274

PLATE

Fuel Filter Mounting

1шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

8

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

9

87491621

1шт.

10

47362992

GUARD

1шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

12

84532958

FITTING,9.49mm ID, 3/8" OD, 90 Degree

Dual Hose

2шт.

13

84425860

FITTING,90 Degree, for Fuel Hose 9.5mm ID

1шт.

14

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

4шт.

15

47601009

HOSE,9.53mm ID, 1880mm L

Cooler to Filter

1шт.

16

47600620

GUARD

2шт.

17

47551317

FITTING,90 Degree, for Fuel Hose 9.5mm ID

1шт.

18

47609475

HOSE

Cooler to Fuel Tank

1шт.
