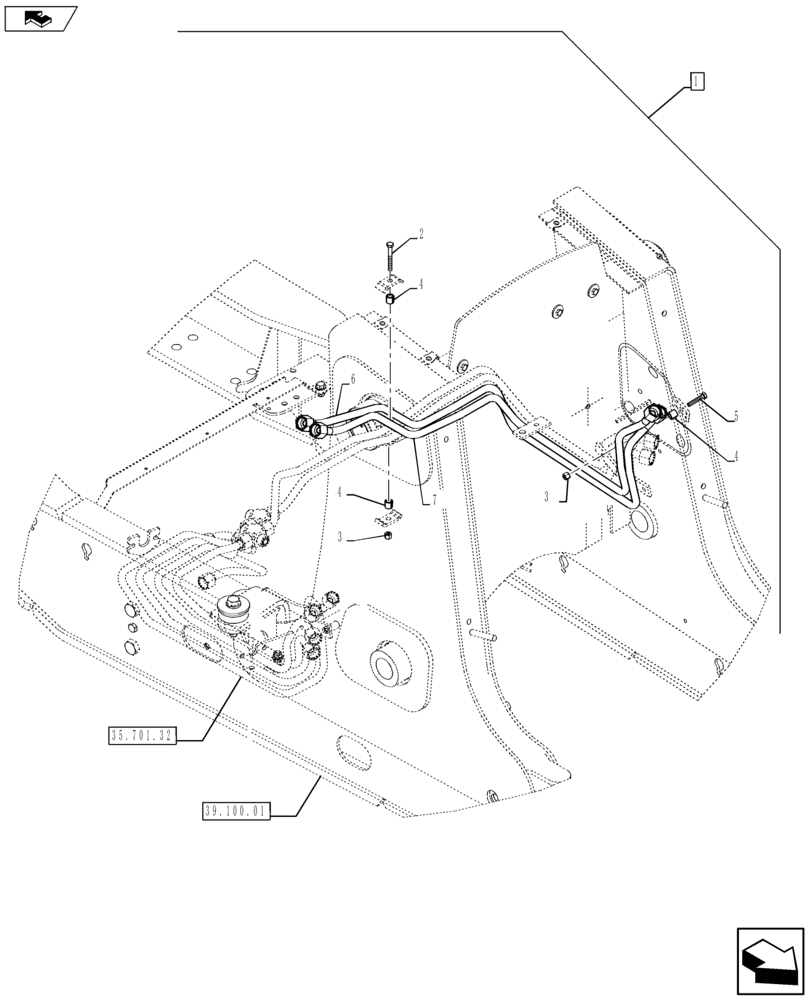

Запчасти Case 580SN WT (88.035.24[04]) - DIA KIT, MECH CONTROLS, 3 SPOOLS, POWERSHIFT TRANSMISSION (88) - ACCESSORIES

1

84484675

KIT

Mech Controls, 3 Spools, PowershiftTransmission, Incl 2 - 7

1шт.

See Ref. 88.035.24 [01] to 88.035.24 [03], 88.035.24 [05] to 88.035.24 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

3

16104121

NUT,M8 x 1.25, Cl 10

2шт.

4

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

3шт.

5

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

6

84293011

TUBE

1шт.

7

84293009

TUBE

1шт.
