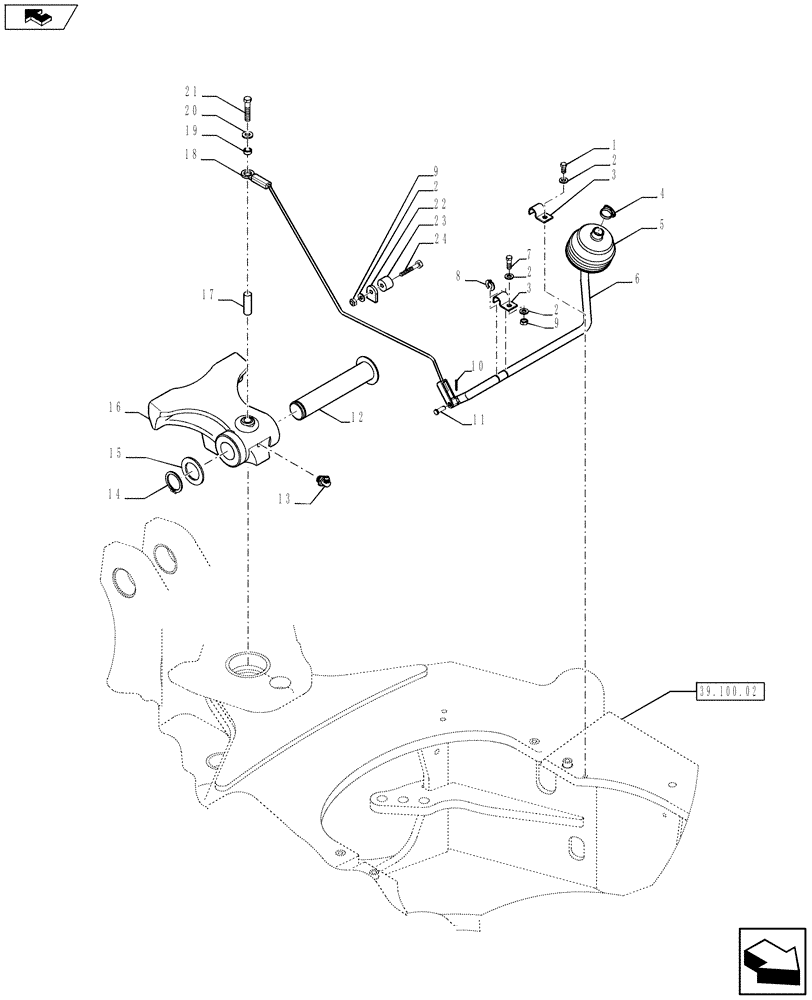

Запчасти Case 580SN WT (84.120.01) - BOOM - LATCH (84) - BOOMS, DIPPERS & BUCKETS

1

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

2

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

3

D143723

SHIN

2шт.

4

D143735

CLAMP,19.1mm - 22.2mm

1шт.

5

D86664

BOOT

1шт.

6

87441850

ROD,15.9mm OD

1шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

8

D143591

RING, SNAP,12.7mm ID, Ext

2шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

10

432-612

COTTER PIN,3/32" x 3/4"

1шт.

11

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

12

84247279

PIN,39.9mm OD x 227mm L

1шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

14

800-44040

SNAP RING,M40, Ext

2шт.

15

D144592

WASHER,41mm ID

2шт.

16

84246414

LATCH HOOK

1шт.

17

396092A1

SPACER,11.05mm ID x 15.88mm OD x 24mm L

1шт.

18

84271200

CABLE,750mm L

1шт.

19

87445245

SPACER,11.06mm ID x 15.88mm OD x 6.4mm L

1шт.

20

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

21

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

22

87432811

BRACKET

1шт.

23

86984547

GUIDE

1шт.

24

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.
