(84.100.22) - BACKHOE BUCKET, COUPLING, MECHANICAL

Запчасти Case 580SN WT (84.100.22) - BACKHOE BUCKET, COUPLING, MECHANICAL (84) - BOOMS, DIPPERS & BUCKETS

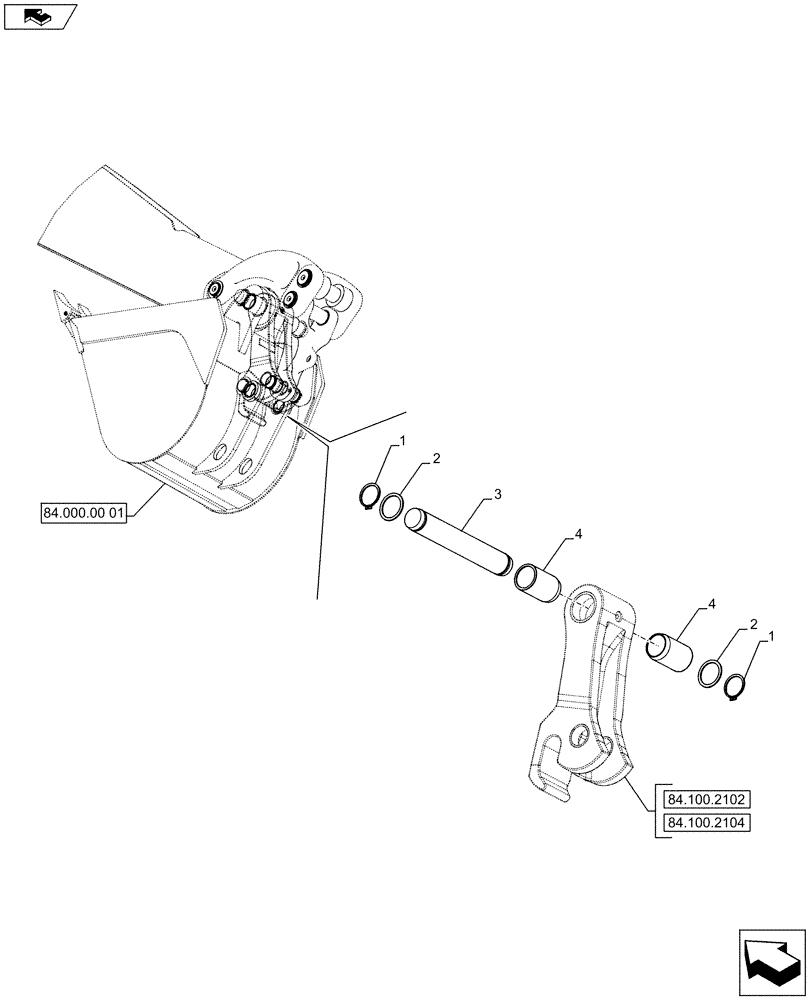

Схема запчастей Case 580SN WT - (84.100.22) - BACKHOE BUCKET, COUPLING, MECHANICAL (84) - BOOMS, DIPPERS & BUCKETS
84.100.2104
2
2
1
3
1
4
home
4
84.000.00 01
84.100.2102
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84233536

RING,55mm ID, Ext

2шт.

2

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

2шт.

3

84223654

PIN,55mm OD x 372.6mm L

Bucket to Dipper

1шт.

4

84224880

BUSHING,55.28mm ID x 67.53mm OD x 104mm L

2шт.

Выбрано товаров: 4
