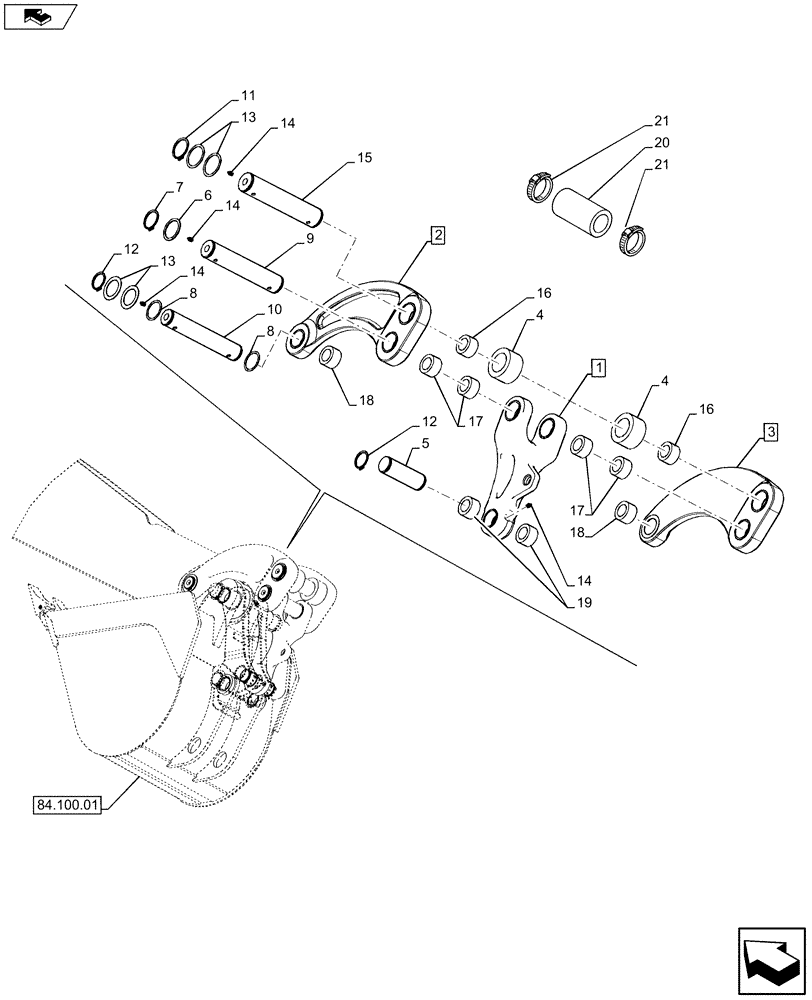

Запчасти Case 580SN WT (84.100.1901) - VAR - 442017 - BACKHOE BUCKET, COUPLING, HYDRAULIC (84) - BOOMS, DIPPERS & BUCKETS

1

84530015

LINK BLOCK

Assy, Incl 17 (q.ty 2), 19

1шт.

2

84229982

LINK ASSY.

LH; Incl 16 - 18

1шт.

3

84229983

LINK ASSY.

RH; Incl 16 - 18

1шт.

4

84170641

SPACER,60.19mm ID x 94.7mm OD x 52mm L

2шт.

5

84223652

PIN,50mm OD x 151mm L

Dump Link to Coupler, 151 x 50

1шт.

6

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

2шт.

7

84233536

RING,55mm ID, Ext

55 mm

2шт.

8

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

6шт.

9

84231908

PIN,55mm OD x 291.76mm L

Backhoe Link, 275 x 55

2шт.

10

84171343

PIN,50mm OD x 291.76mm L

Backhoe Link, 275 x 50

1шт.

11

84224886

RING,60mm ID, Ext

60 mm

2шт.

12

87016943

RING, SNAP,50mm ID , Ext

50 mm

4шт.

13

84224845

SHIM,62mm ID x 75mm OD x 1.5mm Thk

4шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

7шт.

15

84171217

PIN,60mm OD x 294.78mm L

Backhoe Link, 280 x 60

1шт.

16

84170654

BUSHING,60.19mm ID x 70mm OD x 38mm L

60 x 5 x 38

1шт.

17

84229922

BUSHING,55.19mm ID x 65mm OD x 38mm L

55 x 5 x 38

1шт.

18

84170645

BUSHING,50.19mm ID x 60mm OD x 36mm L

50 x 5 x 36

1шт.

19

84227018

BUSHING,50.19mm ID x 59.98mm OD x 29mm L

50 x 5 x 29

2шт.

20

87682091

FOAM INSULATION

1шт.

21

305342A1

STRAP,450mm L

2шт.
