(84.100.12[02]) - STANDARD DIPPER, BUSHING

Запчасти Case 580SN WT (84.100.12[02]) - STANDARD DIPPER, BUSHING (84) - BOOMS, DIPPERS & BUCKETS

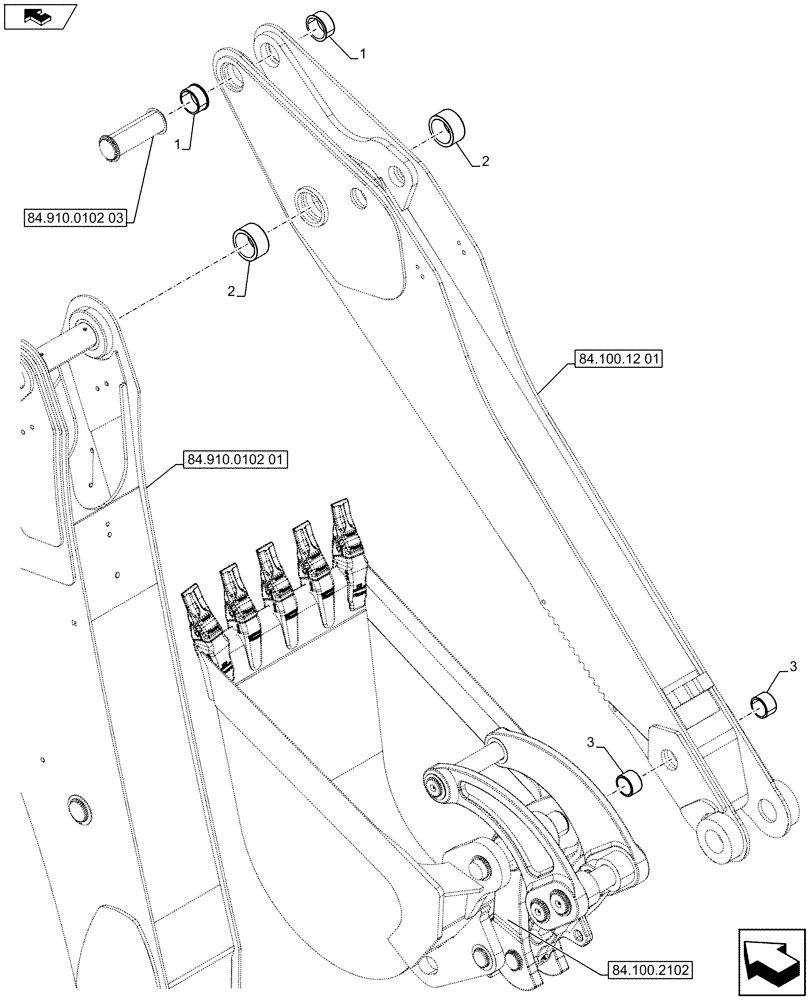

Схема запчастей Case 580SN WT - (84.100.12[02]) - STANDARD DIPPER, BUSHING (84) - BOOMS, DIPPERS & BUCKETS
84.910.0102 01
2
2
1
3
home
1
3
84.100.12 01
84.100.2102
84.910.0102 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84223633

BUSHING,60.19mm ID x 69.98mm OD x 34mm L

60.19mm ID x 69.98mm OD x 34mm H

2шт.

2

D137218

BUSHING,70.19mm ID x 90mm OD x 44mm L

70.19mm ID x 89.98mm OD x 44mm H

2шт.

3

84170645

BUSHING,50.19mm ID x 60mm OD x 36mm L

50.19mm ID x 59.98mm OD x 36mm H

2шт.

Выбрано товаров: 3
