(84.100.10[01]) - STANDARD DIPPER, W/ HYDRAULIC COUPLER

Запчасти Case 580SN WT (84.100.10[01]) - STANDARD DIPPER, W/ HYDRAULIC COUPLER (84) - BOOMS, DIPPERS & BUCKETS

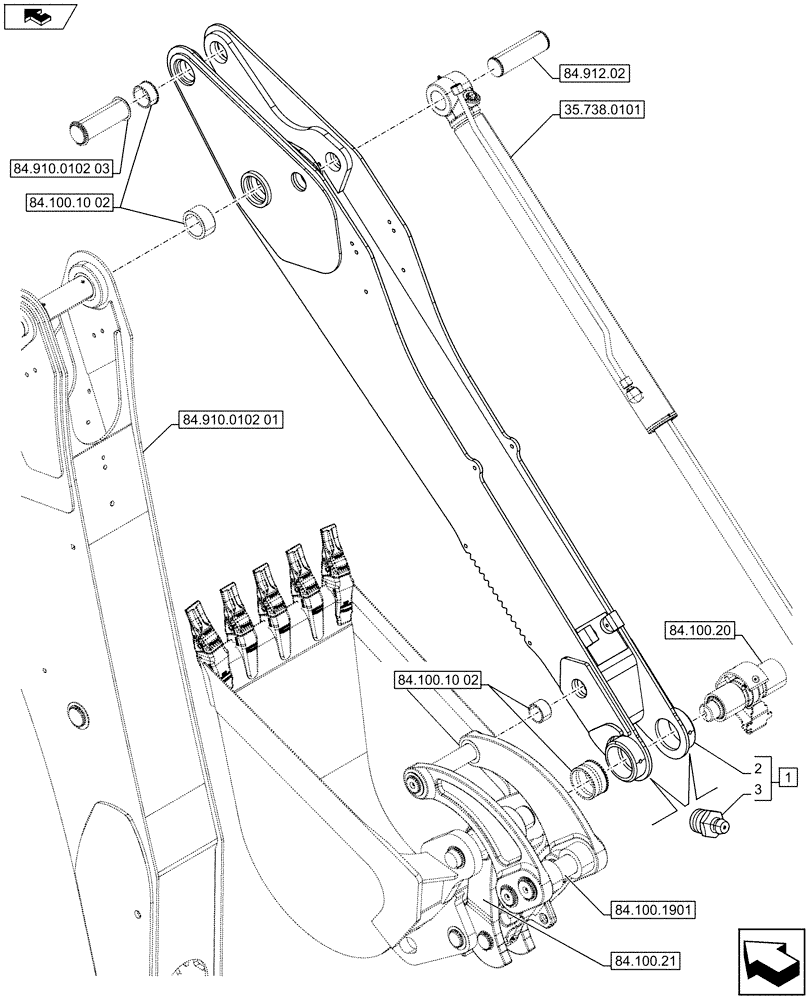

Схема запчастей Case 580SN WT - (84.100.10[01]) - STANDARD DIPPER, W/ HYDRAULIC COUPLER (84) - BOOMS, DIPPERS & BUCKETS
84.910.0102 01
2
1
home
3
84.100.10 02
84.100.10 02
84.100.21
35.738.0101
84.912.02
84.100.1901
84.910.0102 03
84.100.20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84478890

DIPPER

ASSY, Incl 2, 3

1шт.

See Dipper Component also in Figures 84.100.10 (02)

1шт.

2

NSS

NOT SOLD SEPARAT

Dipper, Incl in 1

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
