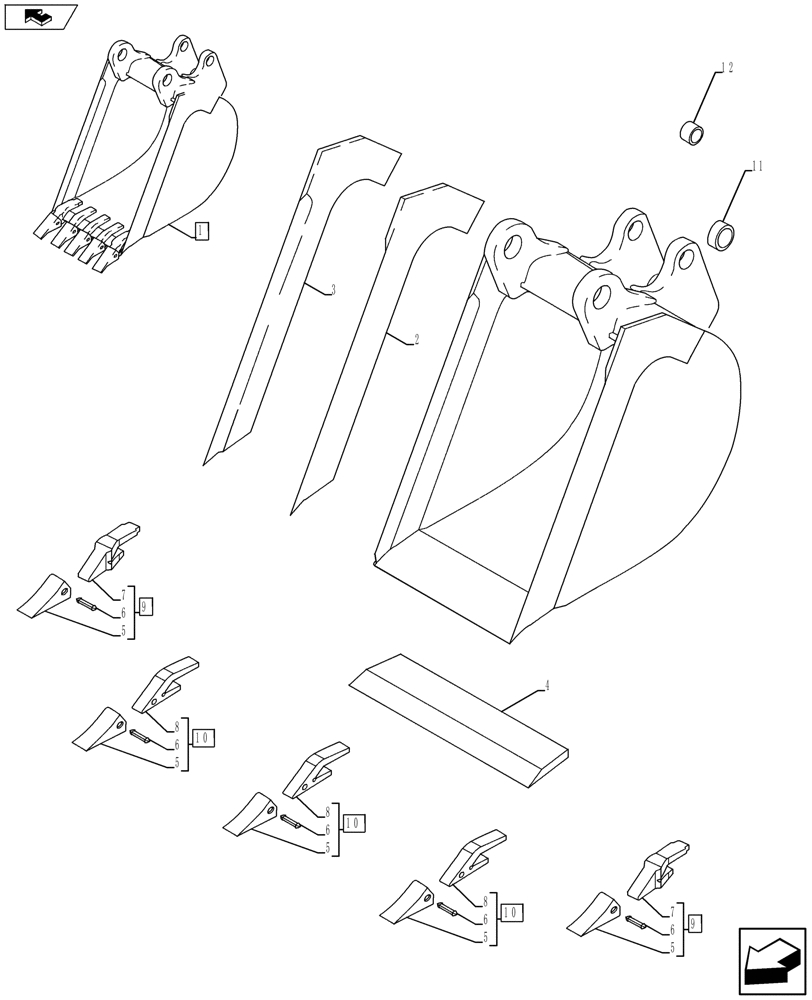

Запчасти Case 580SN WT (84.100.09) - VAR - 423072 - BUCKET (84) - BOOMS, DIPPERS & BUCKETS

1

84416565

BUCKET,24 Inch HI-CAP

Assy, 610MM (24 in), High Capacity, With 5 Teeth, Incl 2 - 12

1шт.

2

141234A1

EDGE, CUTTING

Right Hand

1шт.

3

141233A1

EDGE, CUTTING

Left Hand

1шт.

4

D142012

EDGE, CUTTING,597mm W x 165.1mm L

1шт.

5

84318713

BUCKET TOOTH

1шт.

6

84318739

BUCKET TOOTH KEY

1шт.

7

84424392

BUCKET TOOTH SHANK

1шт.

8

84318729

BUCKET TOOTH SHANK

1шт.

9

84416571

Outer; Incl 5 - 7

2шт.

10

84416569

BUCKET TOOTH POINT

Center; Incl 5, 6, 8

3шт.

11

84244076

BUSHING,55.19mm ID x 65mm OD x 31.75mm L

2шт.

12

84244078

BUSHING,50.19mm ID x 60mm OD x 31.75mm L

2шт.
