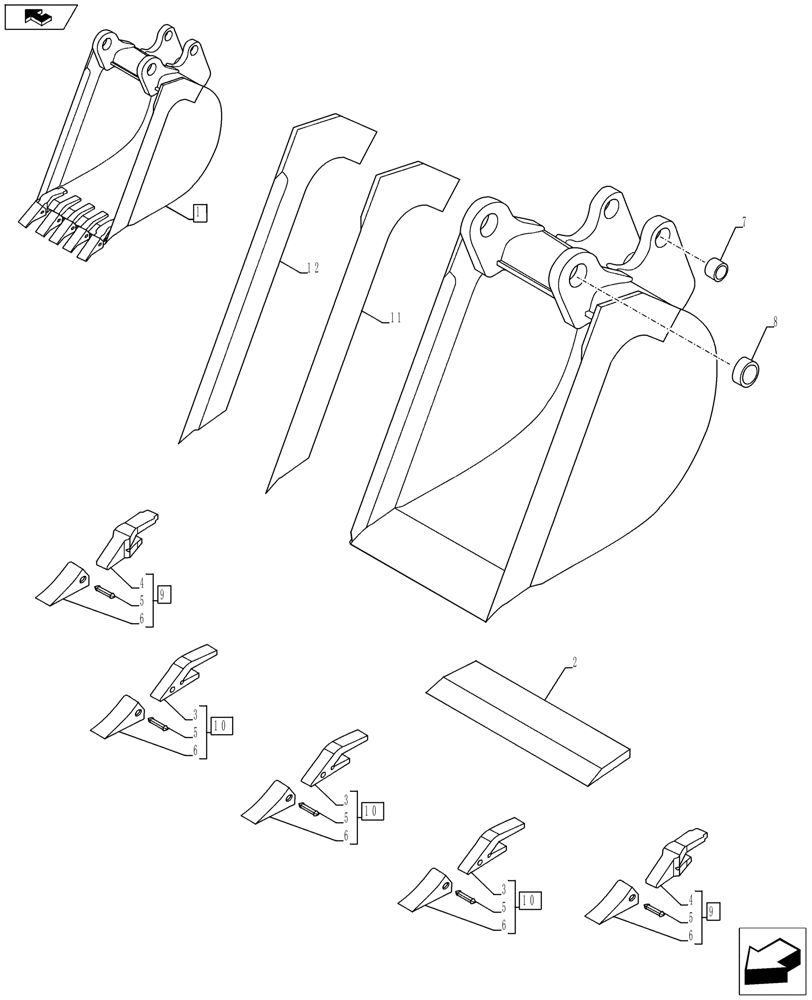

Запчасти Case 580SN WT (84.100.03) - VAR - 423065 - BUCKET (84) - BOOMS, DIPPERS & BUCKETS

1

84416567

BUCKET,30 Inch HI-CAP

Assy, 762MM (W, 30 INCH HI-CAP), High Capacity, With 5 Teeth, Incl 2 - 12

1шт.

2

D145061

EDGE, CUTTING

1шт.

3

84318729

BUCKET TOOTH SHANK

3шт.

4

84424392

BUCKET TOOTH SHANK

2шт.

5

84318739

BUCKET TOOTH KEY

5шт.

6

84318713

BUCKET TOOTH

5шт.

7

84244078

BUSHING,50.19mm ID x 60mm OD x 31.75mm L

2шт.

8

84244076

BUSHING,55.19mm ID x 65mm OD x 31.75mm L

2шт.

9

84416571

Outer, Incl 4 - 6

2шт.

10

84416569

BUCKET TOOTH POINT

Center, Incl 3, 5, 6

3шт.

11

141233A1

EDGE, CUTTING

Left-Hand

1шт.

12

141234A1

EDGE, CUTTING

Right-Hand

1шт.
