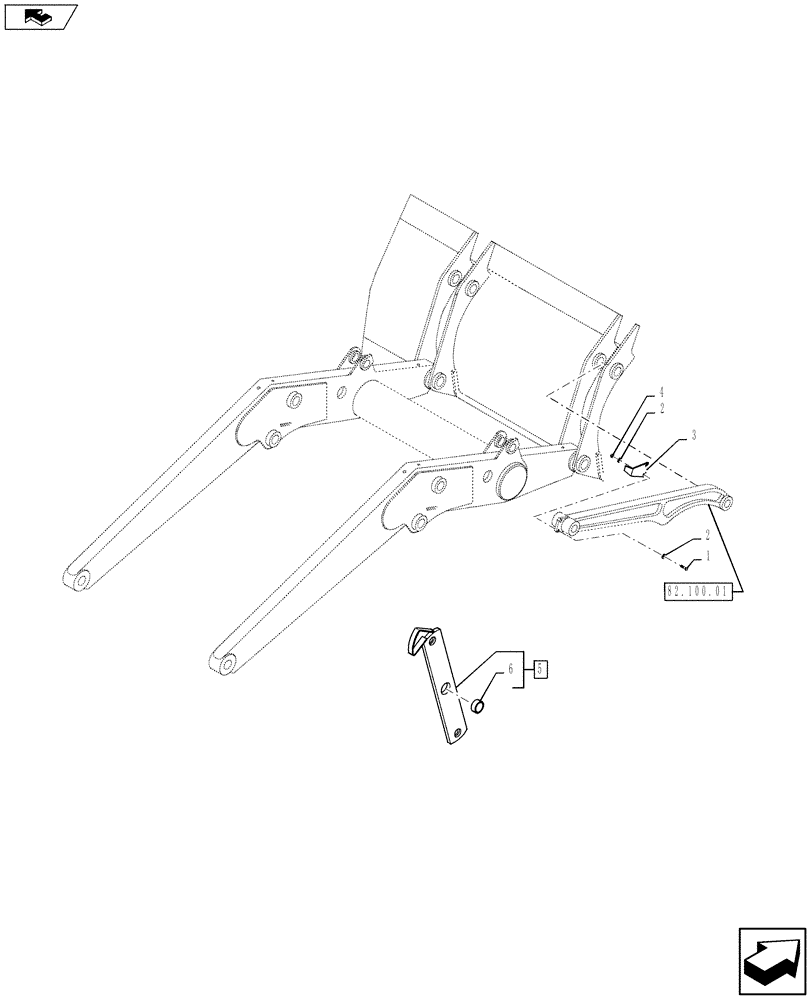

Запчасти Case 580SN WT (82.100.0303) - VAR - 742433, 747863 - FRAME - LOADER LINKAGE (82) - FRONT LOADER & BUCKET

1

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

2

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

3

250851A1

POINTER

1шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

5

84301392

LINK BLOCK

Assy, Incl 6

1шт.

6

D151034

BUSHING,50.23mm ID x 60mm OD x 25.4mm L

1шт.
