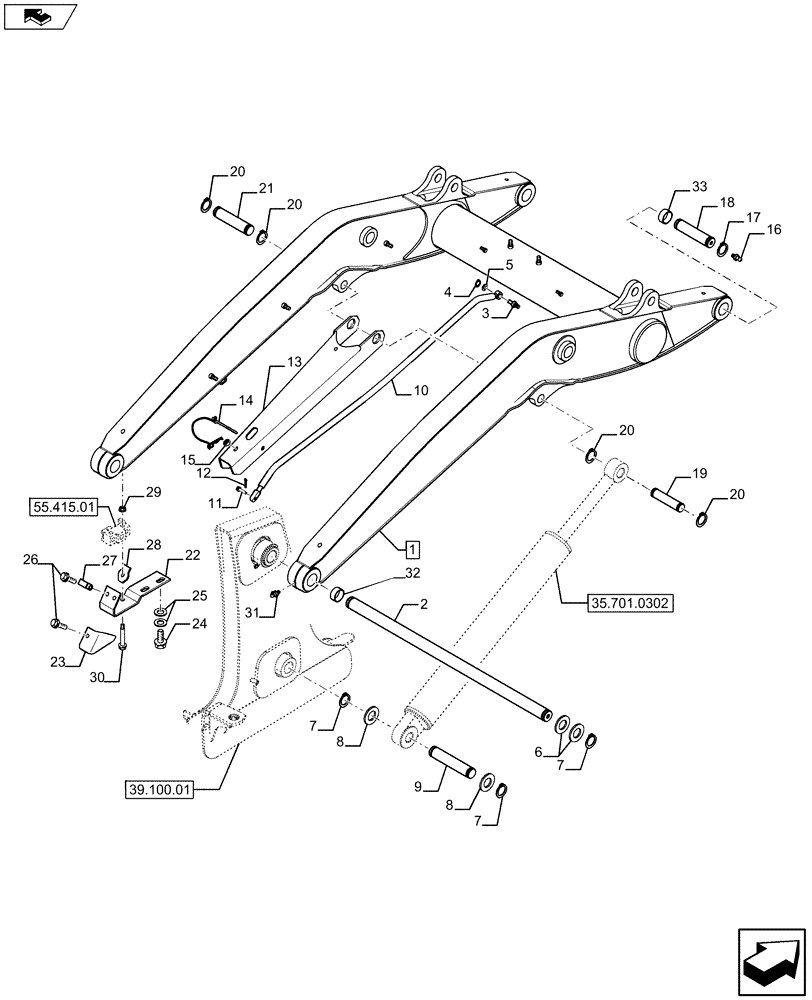

Запчасти Case 580SN WT (82.100.0101[01]) - FRAME - LOADER LIFT (82) - FRONT LOADER & BUCKET

1

84296186

LOADER ARM

Assy, Incl 32 - 33

1шт.

2

D145767

SHAFT,1113.4mm L

1шт.

3

192815A1

PIN,1/2" - 13, 1.85" L

1шт.

4

103-3350

SNAP RING,#50, .392" Dia, E-Type

1шт.

5

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

1шт.

6

181842A1

WASHER,50.4mm ID x 76mm OD x 3.6mm Thk

2шт.

7

800-44050

SNAP RING,M50, Ext

6шт.

8

495-81282

WASHER,2 1/16" x 3" x .109"

6шт.

9

335177A1

PIN,50mm OD x 234mm L

2шт.

10

84280257

ROD

1шт.

11

87548980

CLEVIS PIN,3/8" x 1"

1шт.

12

432-612

COTTER PIN,3/32" x 3/4"

1шт.

13

84280275

STRUT

1шт.

14

104824A1

PIN,12.7mm OD

1шт.

15

344892A1

GROMMET,25.4mm OD, 12.7mm ID, 26mm L

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

17

800-44040

SNAP RING,M40, Ext

4шт.

18

84367828

PIN,40mm OD x 180mm L

2шт.

19

84216891

PIN,44.4mm OD x 150mm L

1шт.

20

86625149

SNAP RING,#175, Ext

4шт.

21

84216892

PIN,44.35mm OD x 179mm L

1шт.

22

128818A1

SUPPORT

1шт.

23

142524A1

PROTECTOR

1шт.

24

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

2шт.

25

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

26

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

27

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

1шт.

28

833-40406

NUT,M6, U

2шт.

29

193-1003

NUT,Keps, w/LW,#6-32

2шт.

30

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

2шт.

31

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

32

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

4шт.

33

109268A1

BUSHING,40.3mm ID x 50mm OD x 35mm L

2шт.
