Запчасти Case 580SN WT (55.512.2402[02]) - INSTRUMENT PANEL, FUSE BOX (OPTION) - TRANSMISSION (STANDARD) (55) - ELECTRICAL SYSTEMS

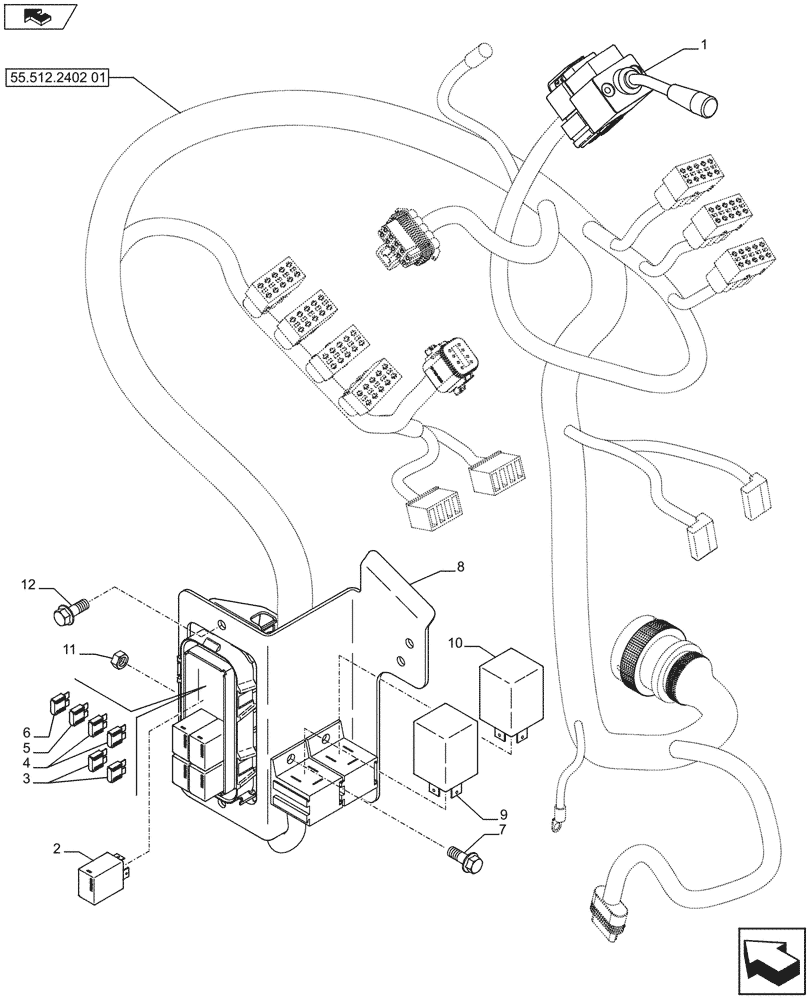

Схема запчастей Case 580SN WT - (55.512.2402[02]) - INSTRUMENT PANEL, FUSE BOX (OPTION) - TRANSMISSION (STANDARD) (55) - ELECTRICAL SYSTEMS
55.512.2402 01
4
6
home
10
2
8
7
12
3
11
home
5
9
1

Артикул

Название

Примечание

Количество

1

389487A1

LIGHT SWITCH

Turn Signal/Driving Lamp High/Low Beam

1шт.

2

87655334

RELAY,12V, 35A, Micro

35A, Road Lights

5шт.

3

121410A1

FUSE,5A, Mini, Tan

2шт.

4

121413A1

FUSE,15A, Mini, Blue

2шт.

5

121411A1

FUSE,7.5A, Mini, Brown

1шт.

6

121412A1

FUSE,10A, Mini, Red

1шт.

7

87301687

SCREW,HWH, #10 - 32 x 1/2"

1шт.

8

84238043

BRACKET

1шт.

9

87578455

RELAY,12V, Turn Signal and Hazard

Turn Signal and Hazard

1шт.

10

347706A3

RELAY,12V, 5A

1шт.

11

231-24409

NUT,#10-32

1шт.

12

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

2шт.

Выбрано товаров: 12
