(55.512.2402[01]) - INSTRUMENT PANEL, HARNESS (OPTION) - TRANSMISSION (STANDARD)

Запчасти Case 580SN WT (55.512.2402[01]) - INSTRUMENT PANEL, HARNESS (OPTION) - TRANSMISSION (STANDARD) (55) - ELECTRICAL SYSTEMS

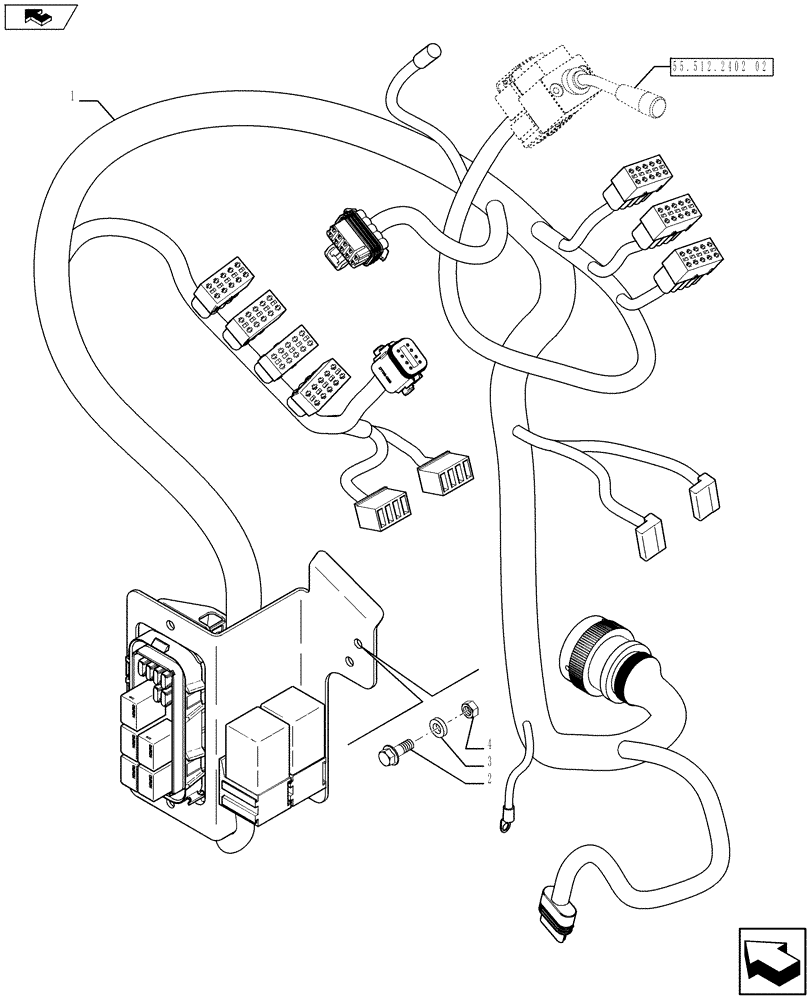

Схема запчастей Case 580SN WT - (55.512.2402[01]) - INSTRUMENT PANEL, HARNESS (OPTION) - TRANSMISSION (STANDARD) (55) - ELECTRICAL SYSTEMS
home
3
4
55.512.2402 02
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84386610

HARNESS

Front Console

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

3

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

Выбрано товаров: 4
