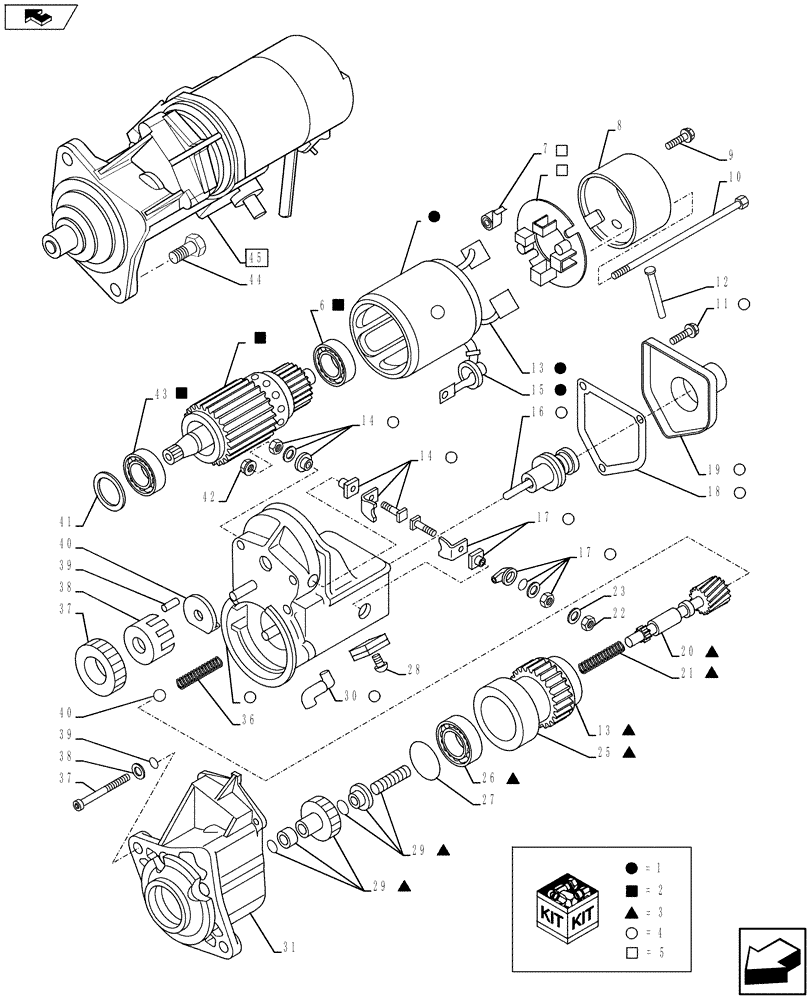

Запчасти Case 580SN WT (55.201.01[01]) - STARTER MOTOR C9003 (55) - ELECTRICAL SYSTEMS

1

87438993

HOUSING

Assy, Incl 13, 15

1шт.

2

87438926

ARMATURE

Assy, Incl 6, 43

1шт.

3

87438994

CLUTCH ASSEMBLY

Assy, Incl 20, 21, 25, 26, 29

1шт.

4

87438940

SOLENOID

Assy, Incl 11, 14, 16 - 19, 30

1шт.

5

87438996

HOLDER

Assy, Incl 7

1шт.

6

87438928

BALL BEARING

1шт.

7

87438997

SPRING

4шт.

8

87438999

COVER

1шт.

9

87439006

CAPTIVE WASHER SCREW,Phil Pan Hd, M5 x 9.40mm

2шт.

10

87438951

BOLT

2шт.

11

87438950

BOLT

3шт.

12

87439007

BUSHING

1шт.

13

87438925

COMMUTATOR BRUSH

2шт.

14

87438942

KIT, STARTER MTR REP

1шт.

15

87438993

HOUSING

1шт.

16

87438944

PLUNGER ASSY.

1шт.

17

87438941

KIT, STARTER MTR REP

1шт.

18

87438946

GASKET

1шт.

19

87438948

COVER

1шт.

20

87438935

SHAFT

1шт.

21

87438933

COMPRESSION SPRING

1шт.

22

100016

NUT,M10 x 1.5, Cl 8

1шт.

23

892-11010

LOCK WASHER,M10

1шт.

24

87438932

BALL BEARING

1шт.

25

87438930

KIT, STARTER MTR REP

1шт.

26

87438931

BALL BEARING

1шт.

27

87439010

SEAL,2.4mm Thk x 47.2mm ID

1шт.

28

87438956

BOLT

1шт.

29

87438929

KIT, STARTER MTR REP

1шт.

30

87438995

BUSHING

1шт.

31

87438937

HOUSING

1шт.

32

87439008

SCREW,Sl Pan Hd, M6 x 70mm

3шт.

33

87439061

WASHER

3шт.

34

87439011

O-RING

3шт.

35

87439000

BALL

1шт.

36

87439001

COMPRESSION SPRING

1шт.

37

87439002

GEAR

1шт.

38

87439004

RETAINER

1шт.

39

87439003

ROLLER

5шт.

40

87439005

RETAINER

1шт.

41

87438954

WASHER

1шт.

42

87439009

NUT

1шт.

43

87438927

BALL BEARING

1шт.

44

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

45

86992395

STARTER MOTOR,12V, 2.7kW

Assy, Incl 1 - 43

1шт.

45

86992395R

REMAN-STARTER,12V, 2.7kW

580N From PIN NCC560000, 580SN From PIN NCC564000, 580SNWT Wide Track, 590SN, All Tier 4A, (3/12)

1шт.

45

86992395C

CORE-STARTER,12V, 2.7kW

Return Number

1шт.

86992395GV

STARTER MOTOR,12V, 2.7kW

1шт.
