(44.511.02) - VAR - 9200015 - FRONT WHEEL ASSY - 4WD

Запчасти Case 580SN WT (44.511.02) - VAR - 9200015 - FRONT WHEEL ASSY - 4WD (44) - WHEELS

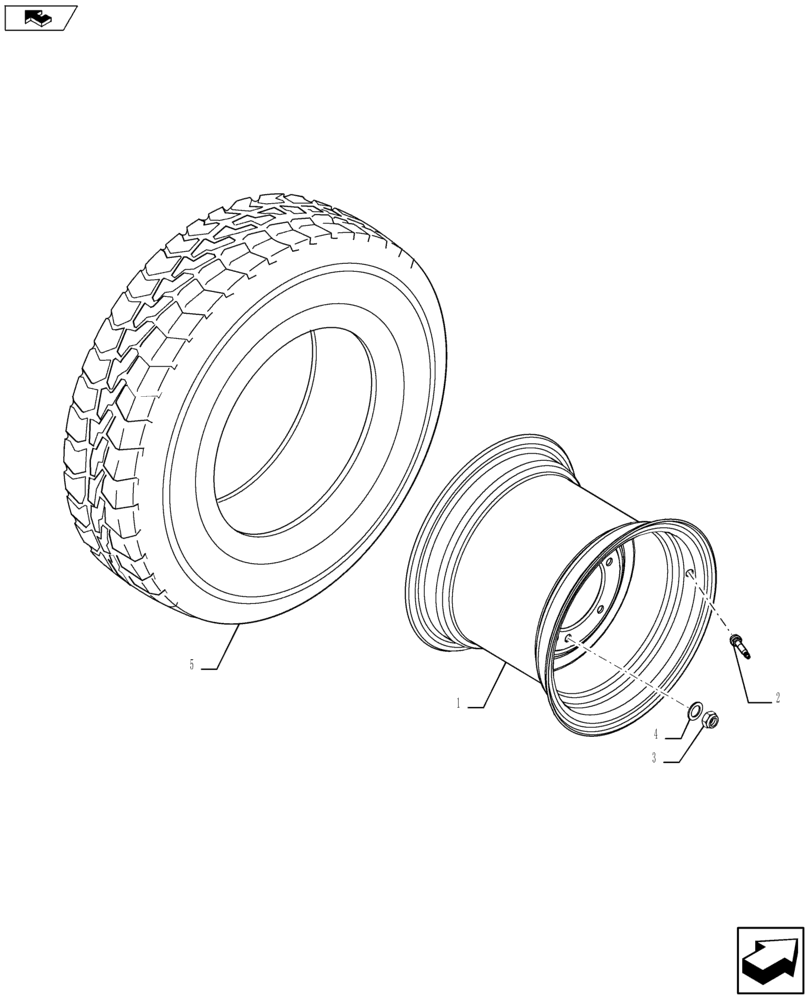

Схема запчастей Case 580SN WT - (44.511.02) - VAR - 9200015 - FRONT WHEEL ASSY - 4WD (44) - WHEELS
1
4
5
3
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87699875

WHEEL,9x18, 228.6mm W, 8 Holes, CASE Power Tan

9 x 18

2шт.

2

387897R91

VALVE STEM

2шт.

3

100092

WHEEL NUT,M18 x 1.5, Cl 8

16шт.

4

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

16шт.

5

NS

NOT SERVICED

TIRE, 12.5/80 x 18, 10 PLY, Purchase Locally

2шт.
