Запчасти Case 580SN WT (41.216.06) - AXLE, FRONT DRIVE - CYLINDER, STEERING STD ACP (41) - STEERING

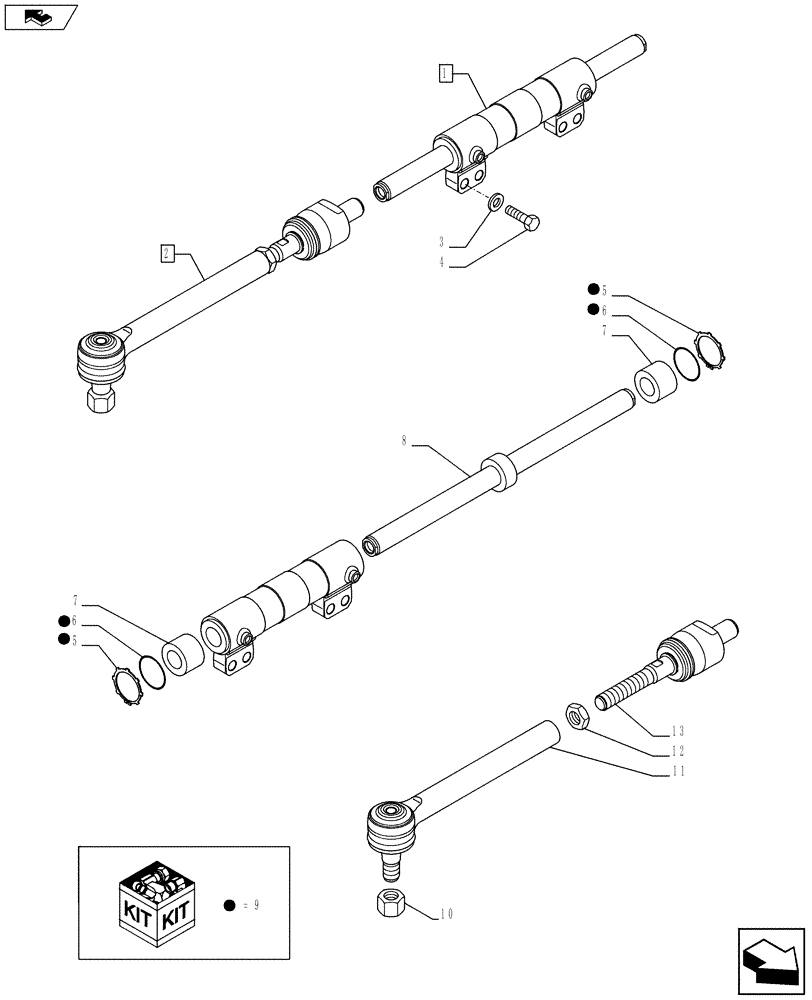

Схема запчастей Case 580SN WT - (41.216.06) - AXLE, FRONT DRIVE - CYLINDER, STEERING STD ACP (41) - STEERING
12
6
7
9
home
9
9
10
8
13
2
7
6
9
9
5
11
4
3
1
5

Артикул

Название

Примечание

Количество

1

84264405

STEERING CYLINDER,Double Acting, 36mm Rod, 63mm Bore, 245mm Stroke

(Four Wheel Drive) Assy, Incl 5 - 9

1шт.

2

84264409

STEERING TIE-ROD

Assy, Incl 10 - 13

2шт.

3

84349418

WASHER,19mm ID x 34mm OD x 3mm Thk

4шт.

4

84273750

LOCK BOLT

4шт.

5

84276993

SNAP RING,63mm OD x 2mm Thk

2шт.

6

84276992

CIRCLIP,63mm Special

2шт.

7

84276991

CYLINDER END CAP

2шт.

8

84276950

ROD

1шт.

9

84330972

SEAL KIT

1шт.

10

87489980

NUT,M18 x 1.5, Cl. 8

1шт.

11

84276564

BALL JOINT,399mm L

1шт.

12

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

1шт.

13

87489981

BALL JOINT,399mm L

1шт.

Выбрано товаров: 13
