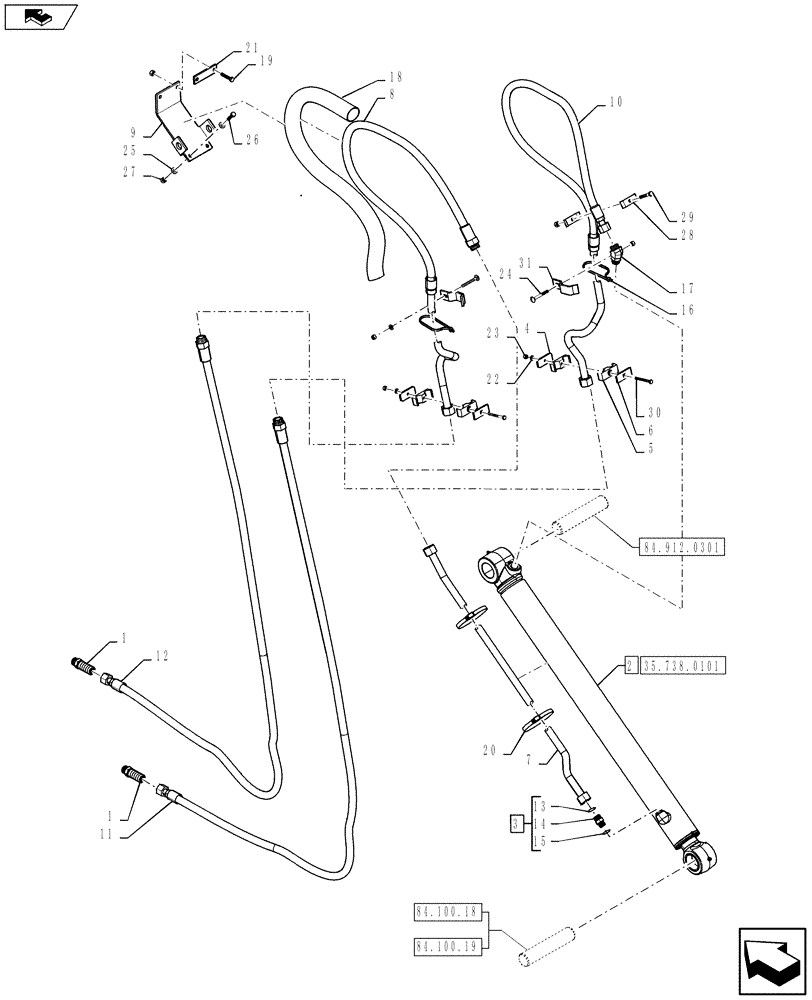

Запчасти Case 580SN WT (35.738.0301) - VAR - 423076 - EXTENDABLE DIPPER, BUCKET CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

87393627

HYD CONNECTOR

2шт.

2

84421595

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 88.9mm Bore, 897.9mm Stroke

Bucket; Assy

1шт.

2

84210935R

REMAN-HYD CYLINDER

Bucket; Assy

1шт.

2

84210935C

CORE-HYD CYLINDER

Return Number

1шт.

3

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Assy, Incl 13 - 15

1шт.

4

84342644

PLATE

2шт.

5

87000146

CLAMP

2шт.

6

84283495

SECURING STRAP

2шт.

7

84305540

TUBE

Bucket Cylinder Rod

1шт.

8

84283822

HYD TUBE

Bucket Cylinder Rod

1шт.

9

84359870

BRACKET

1шт.

10

84283823

HYD TUBE

Bucker Cylinder Head

1шт.

11

84257611

HYDRAULIC HOSE,15.88mm ID x 2755mm L, SAE 100R16

Valve to Bucket Cylinder Head

1шт.

12

84281616

HOSE ASSY.,15.88mm ID x 2800mm L, SAE 100R16

Valve to Bucket Cylinder Rod

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

Hyd. Connector; Incl in 3

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

17

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

Assy, Incl 32 - 34

1шт.

18

84373395

PROTECTIVE SLEEVE,72.4mm ID x 1105mm L

2шт.

19

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

20

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.

21

101479A1

SUPPORT

1шт.

22

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

23

412250

NUT,M8 x 1.25, Cl 8

4шт.

24

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

2шт.

25

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

26

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

27

412141

NUT,M10 x 1.5, Cl 8

5шт.

28

D143846

CLAMP

2шт.

29

120071

BOLT,Hex, M10 x 65, 8.8

1шт.

30

120108

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8, Full Thd

2шт.

31

84367726

CLAMP,3/4" Clamping tube

2шт.
