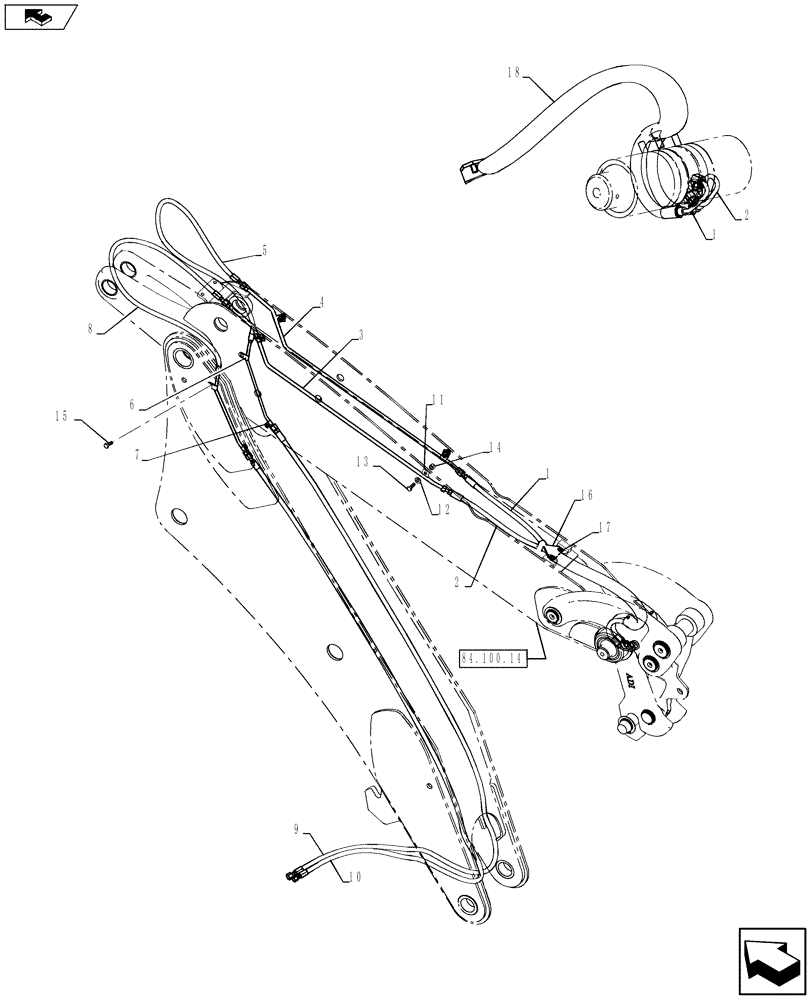

Запчасти Case 580SN WT (35.737.04) - HYDRAULICS - COUPLER, BACKHOE BUCKET (EXTENDABLE DIPPER) (35) - HYDRAULIC SYSTEMS

1

84338030

HYD TUBE

1шт.

2

84338027

HYD TUBE

1шт.

3

84262886

HYD TUBE

1шт.

4

84262882

HYD TUBE

1шт.

5

84338005

HYD TUBE

1шт.

6

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

2шт.

7

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

2шт.

8

84338021

HYD TUBE

1шт.

9

84336702

HOSE ASSY.,6.3mm ID x 2878mm L

1шт.

10

84336704

HOSE ASSY.,6.3mm ID x 2836mm L

1шт.

11

84261209

CLAMP,1/2" clamping pipes

4шт.

12

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

6шт.

13

935388

BOLT,Hex, M10 x 28mm, Cl 8.8, Full Thd

4шт.

14

412141

NUT,M10 x 1.5, Cl 8

6шт.

15

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

16

87418551

CLAMP

1шт.

17

407975A1

HEX SOC SCREW,FLAT, M8 x 1.25 x 12mm, Cl 10.9

2шт.

18

84355976

PROTECTIVE SLEEVE,56mm ID x 590mm L

2шт.
