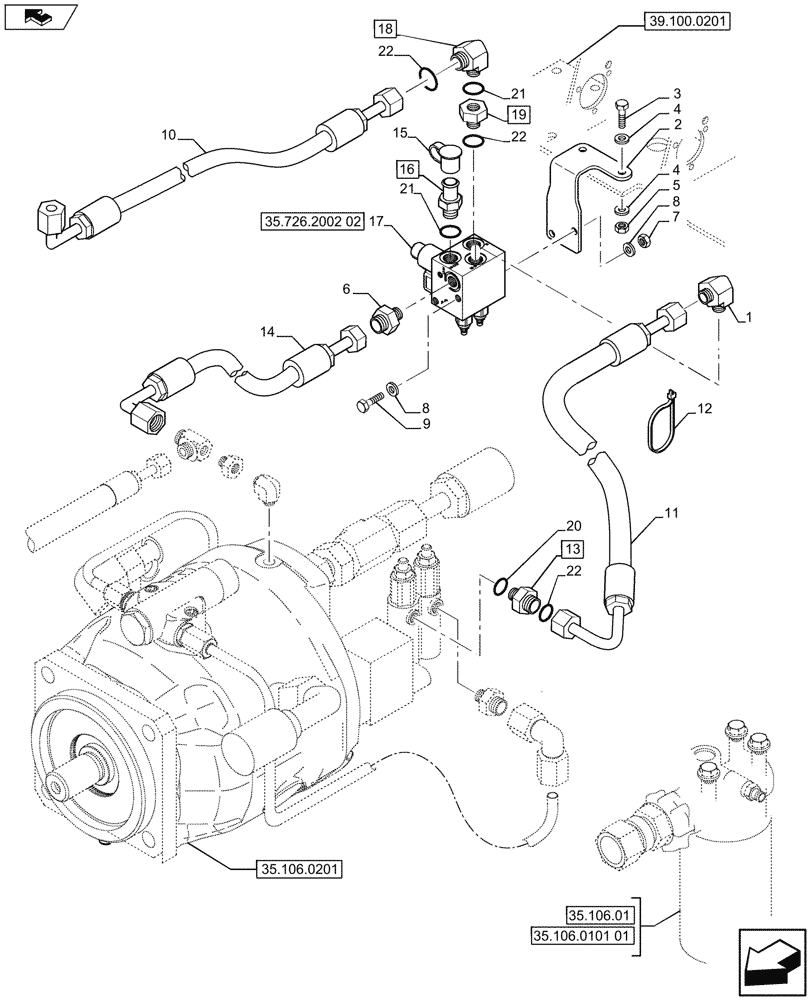

Запчасти Case 580SN WT (35.726.2002[01]) - VAR - X20233X - HYDRAULICS - HEAVY LIFT (MECH CONTROL) (35) - HYDRAULIC SYSTEMS

1

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

1шт.

2

84483241

BRACKET

1шт.

3

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

4

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

5

9706690

NUT,M8 x 1.25, Cl 8

2шт.

6

87672176

HYD CONNECTOR

1шт.

7

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

8

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

9

9850685

BOLT,Hex, M6 - 1 x 90mm, Cl 8.8

2шт.

10

84483473

HOSE,10mm ID x 1065mm L, SAE 100R6

1шт.

11

84540599

HOSE,6.3mm ID x 880mm L, SAE 100R16 Type S

1шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

Assy, incl 20

1шт.

13

9840330

HYD CONNECTOR,11/16" - 16 ORFS x 7/16" - 20 ORB

Assy, Incl 20, 22

1шт.

14

84483235

HOSE,10mm ID x 842mm L, SAE 100R16 Type S

1шт.

15

H434163

DUST CAP

1шт.

16

86596853

QUICK MALE COUPLING,9/16"-18

Assy, Incl 21

1шт.

17

84527720

CONTROL VALVE

Assy, Heavy Lift

1шт.

18

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

Assy, Incl 22

1шт.

19

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Assy, Incl 21 - 22

1шт.

20

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
