(27.110.02) - DIFFERENTIAL LOCK - HYDR LINES

Запчасти Case 580SN WT (27.110.02) - DIFFERENTIAL LOCK - HYDR LINES (27) - REAR AXLE SYSTEM

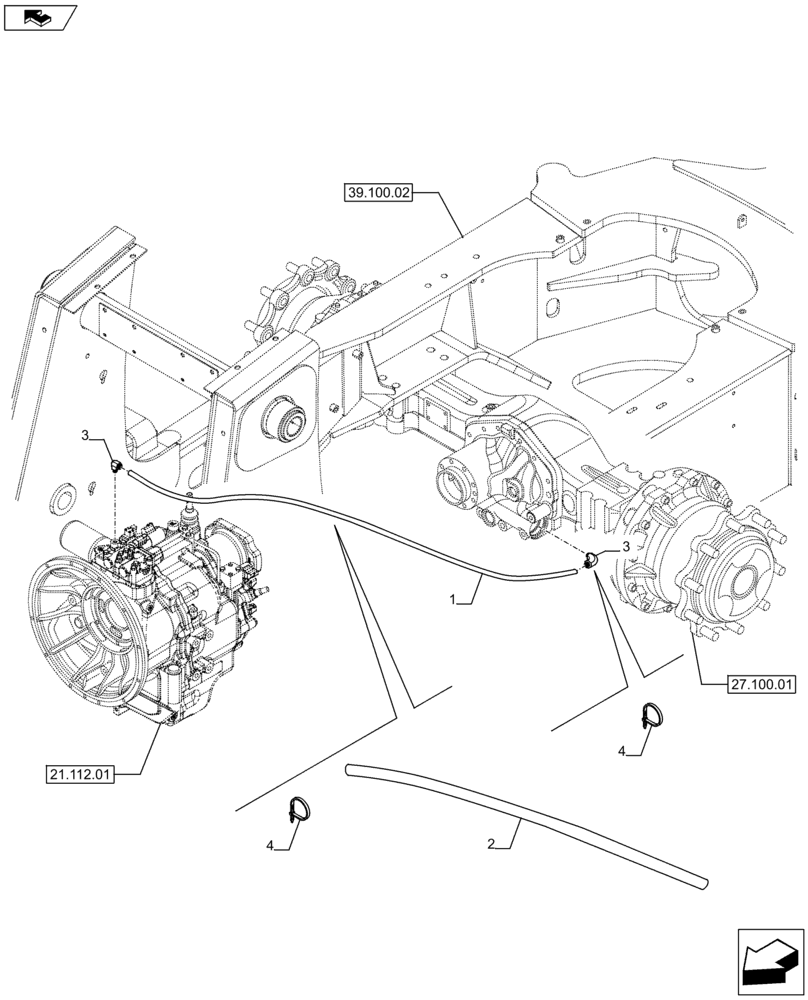

Схема запчастей Case 580SN WT - (27.110.02) - DIFFERENTIAL LOCK - HYDR LINES (27) - REAR AXLE SYSTEM
3
4
39.100.02
2
27.100.01
home
3
1
21.112.01
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87431701

HYDRAULIC HOSE,6.4mm ID x 1350mm L

1шт.

2

87491619

GUARD,19.1mm ID x 1400mm L

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

2шт.
