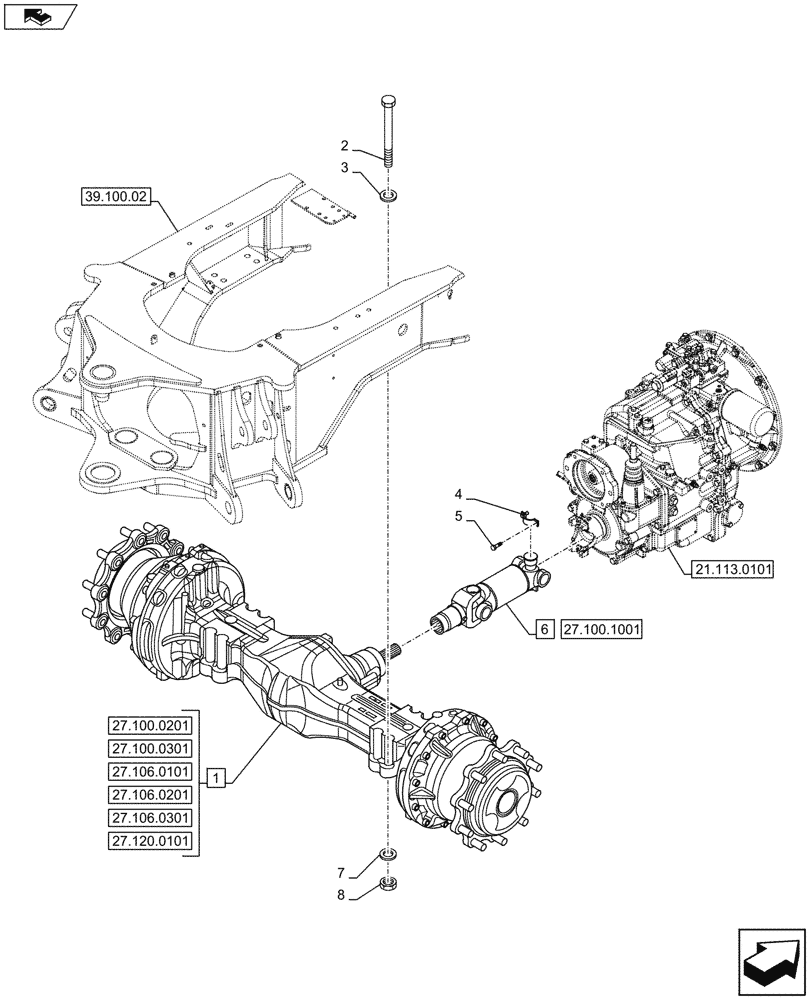

Запчасти Case 580SN WT (27.100.0101) - REAR AXLE ASSY, DRIVE SHAFT (27) - REAR AXLE SYSTEM

1

87395386

REAR AXLE

Assy, See 27.100.0201-27.100.0301-27.106.0101-27.106.0201-27.106.0301-27.120-0101

1шт.

2

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

8шт.

3

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

8шт.

4

D137626

CLAMP,30.175mm D Clamping Pipe

2шт.

5

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

4шт.

6

87693489

DRIVE SHAFT

Assy, See 27.100.10

1шт.

7

87618533

WASHER,21mm ID x 46mm OD x 6.4mm Thk

8шт.

8

829-1420

NUT,M20, Cl 10

8шт.
