(25.102.04[02]) - AXLE, FRONT DRIVE - DIFFERENTIAL HD ACP LS

Запчасти Case 580SN WT (25.102.04[02]) - AXLE, FRONT DRIVE - DIFFERENTIAL HD ACP LS (25) - FRONT AXLE SYSTEM

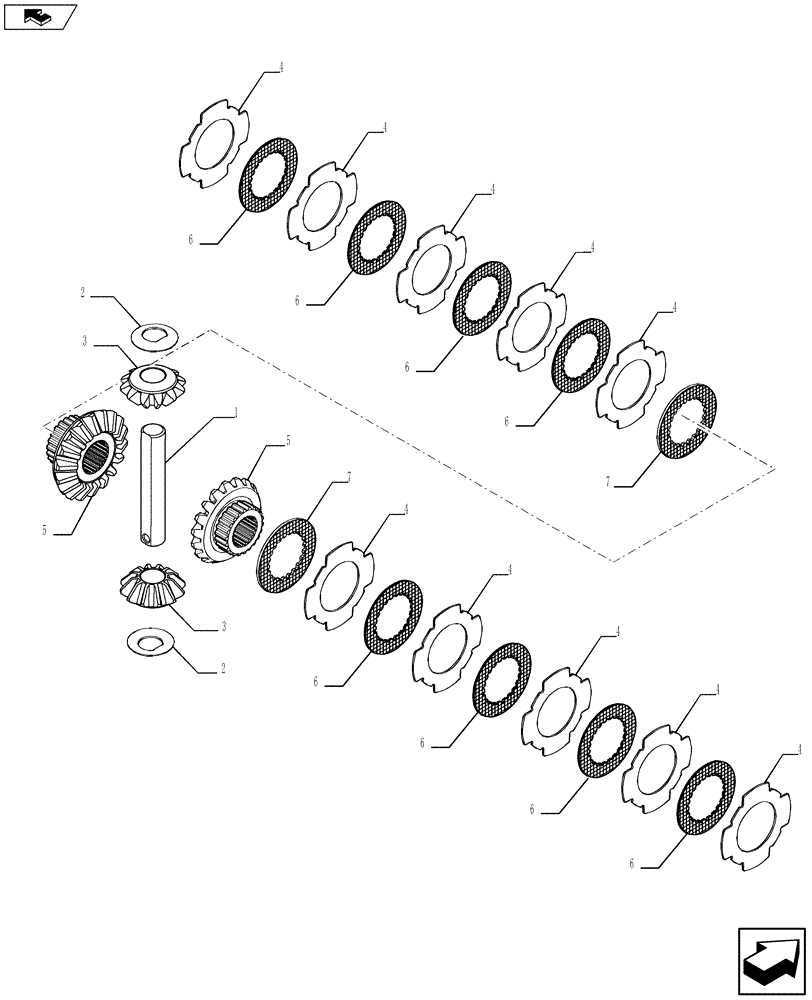

Схема запчастей Case 580SN WT - (25.102.04[02]) - AXLE, FRONT DRIVE - DIFFERENTIAL HD ACP LS (25) - FRONT AXLE SYSTEM
6
6
home
4
4
2
3
7
6
6
4
6
4
4
5
7
4
4
4
6
4
1
3
6
6
5
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84268545

PIN,21.9mm OD x 122.9mm L

1шт.

2

87727553

THRUST WASHER,20.27mm ID x 41.75mm OD x 1.5mm Thk

2шт.

3

87727552

BEVEL PINION,12T

2шт.

4

84225954

DISC,69.7mm OD x 1.5mm Thk

10шт.

5

NSS

NOT SOLD SEPARAT

Bevel Gear, Incl in 84278738

2шт.

6

NSS

NOT SOLD SEPARAT

Disc, Incl in 84278738

8шт.

7

NSS

NOT SOLD SEPARAT

Disc, Incl in 84278738

2шт.

Выбрано товаров: 7
