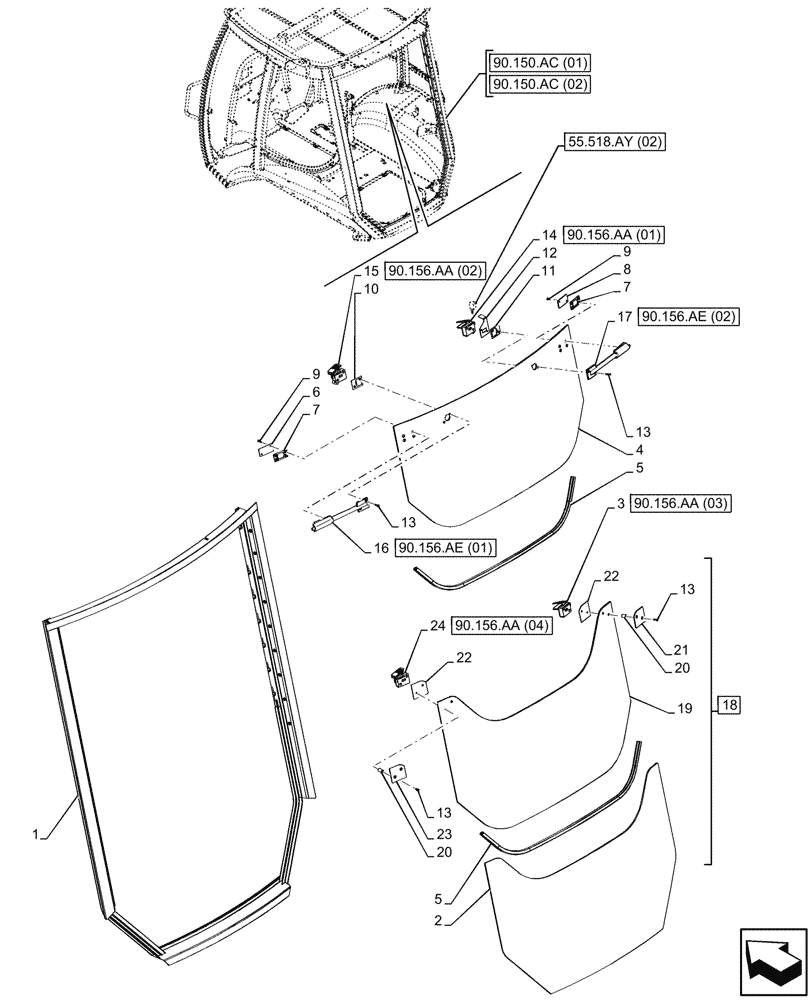

Запчасти Case 580SN WT (90.156.AB) - VAR - 747853 - CAB, WINDOW, REAR, GLASS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87435929

WINDOW FRAME

1шт.

2

352210A1

GLASS,CAB

1шт.

3

411909A1

LATCH

ASSY

1шт.

4

352208A1

GLASS,CAB

1шт.

5

395348A1

SEALING STRIP

2шт.

6

87423502

BACK PLATE

1шт.

7

402843A1

PLATE

2шт.

8

87423503

BACK PLATE

1шт.

9

87445051

HEX SOC SCREW,Flat Hd, Csk, M5 x 16mm, Gr 8.8, Prev Torque

4шт.

10

402845A1

PLATE

1шт.

11

402844A1

PLATE

1шт.

12

402836A1

BRACKET

1шт.

13

87435453

HEX SOC SCREW,FLAT, M5 x 0.8 x 25mm

8шт.

14

411914A1

LATCH

ASSY

1шт.

15

411912A1

LATCH

ASSY

1шт.

16

411911A1

LATCH

ASSY

1шт.

LH - Determine from Seat facing Radiator

1шт.

17

411910A1

LATCH

ASSY

1шт.

RH - Determine from Seat facing Radiator

1шт.

18

87432256

WINDOW ASSY

ASSY, Incl 19 - 24

1шт.

No Longer Includes Ref 5

1шт.

19

352209A1

GLASS,CAB

1шт.

20

87428573

GROMMET,6.35mm ID, 8mm OD

4шт.

21

87426964

PLATE

1шт.

22

87426963

PLATE

2шт.

23

87426969

BACKING PLATE

1шт.

24

411908A1

LATCH

ASSY

1шт.
