Запчасти Case 580SN WT (90.151.AE[02]) - VAR - 423000 - DELUXE CANOPY - SUN PROTECTION (90) - PLATFORM, CAB, BODYWORK AND DECALS

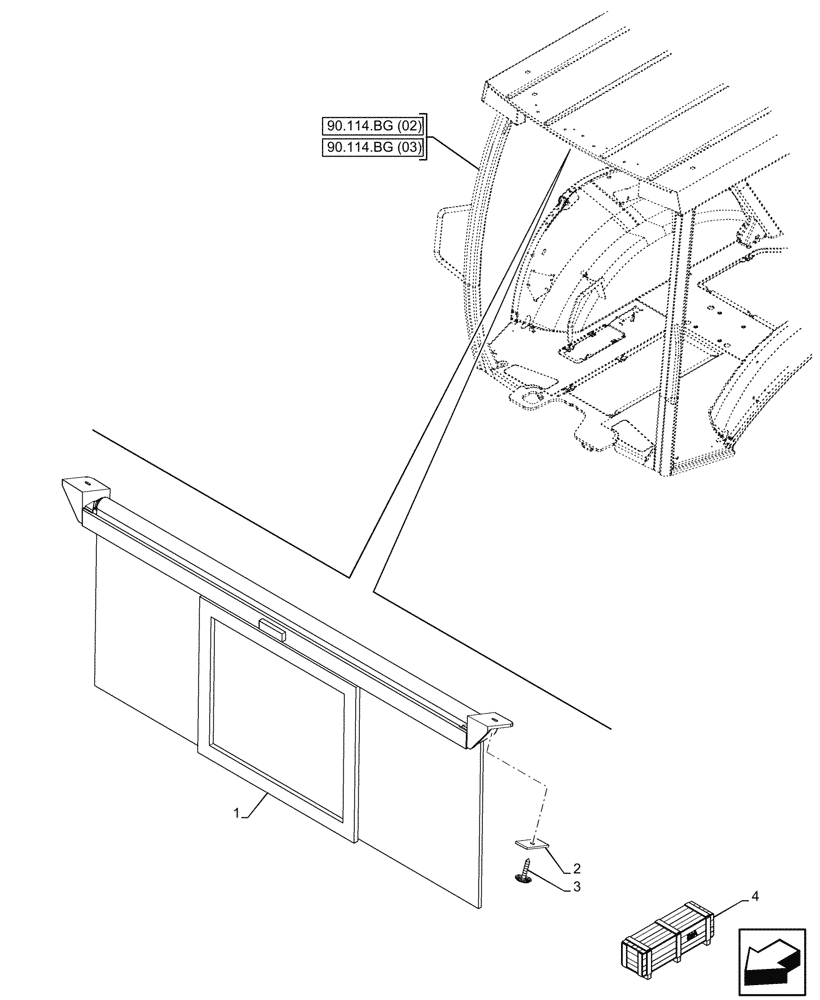

Схема запчастей Case 580SN WT - (90.151.AE[02]) - VAR - 423000 - DELUXE CANOPY - SUN PROTECTION (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.114.bg (03)
4
3
1
2
90.114.bg (02)

Артикул

Название

Примечание

Количество

1

364180A1

VISOR, SUN

1шт.

2

409618A1

PLATE

2шт.

3

47602865

SCREW,Phillips Drive, Oval HD, M16 x 1

2шт.

4

47605397

CONSTRUCTION DIA

Canopy Conversion Narrow, Incl, 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

4

47605399

CONSTRUCTION DIA

Canopy Conversion Wide, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 7
