Запчасти Case 580SN WT (90.120.AJ[02]) - VAR - 747851 - SEAT PEDESTAL & MECHANICAL SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

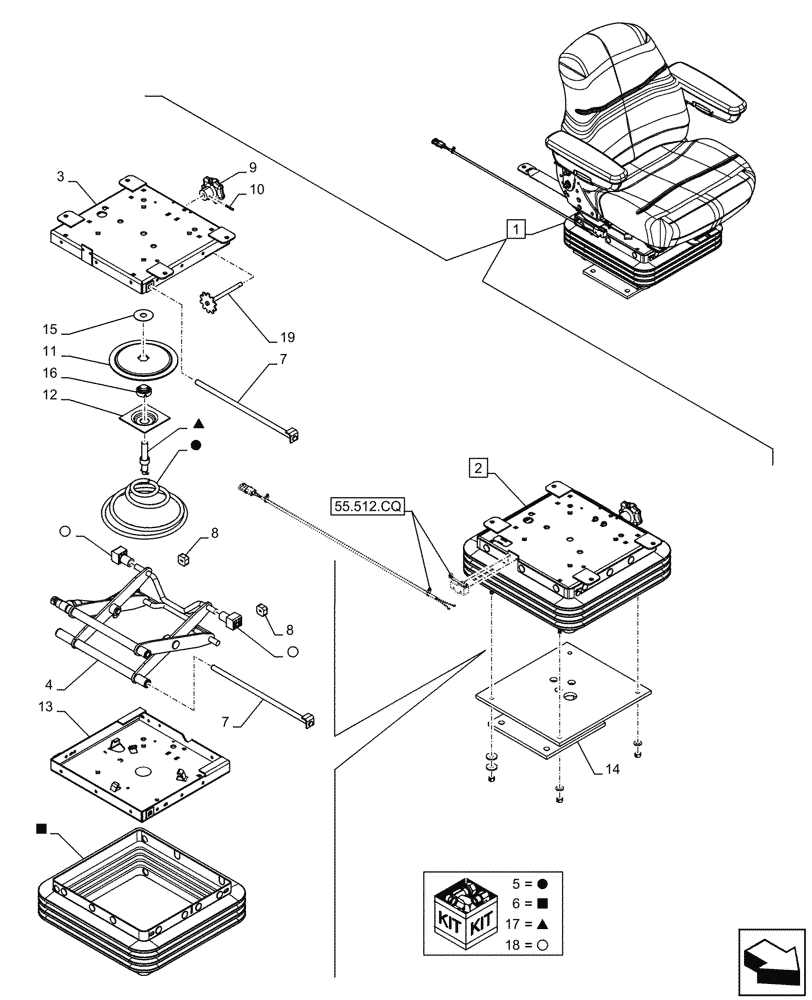

Схема запчастей Case 580SN WT - (90.120.AJ[02]) - VAR - 747851 - SEAT PEDESTAL & MECHANICAL SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
55.512.cq
13
19
16
6
12
14
1
6
9
10
4
7
11
8
15
8
17
18
18
6
5
5
17
18
2
17
3
18
7
5

Артикул

Название

Примечание

Количество

1

84557475

SEAT

Assy, Incl 2 - 19

1шт.

See Seat Components also in Figures 55.512.CQ, 90.120.AD (03)

1шт.

2

87308141

SEAT SUPPORT

Assy, Incl 3 - 13, 15 - 19

1шт.

3

84586961

HOUSING

1шт.

4

87308144

SEAT SUPPORT

1шт.

5

87308146

SEAT ACCESSORY

1шт.

6

87308147

SEAT ACCESSORY

1шт.

7

112884A1

SHAFT,368mm L

2шт.

8

A45054

BUMPER,Neoprene

2шт.

9

123969A1

SEAT ACCESSORY

Assy, Incl 10

1шт.

10

38-11016

LOCK PIN,5/32" x 1", Slotted

1шт.

11

84586970

GEAR,188mm OD

1шт.

12

84586971

GEAR SHAFT

1шт.

13

87308148

SEAT ACCESSORY

1шт.

14

87555125

PEDESTAL

1шт.

15

84586966

WASHER,27.5mm ID x 70mm OD x 05mm Thk

1шт.

16

84586972

HUB

1шт.

17

87308148

SEAT ACCESSORY

1шт.

18

1977725C1

SLIDER

1шт.

19

84586969

GEAR

Gear & Shaft

1шт.

Выбрано товаров: 20
