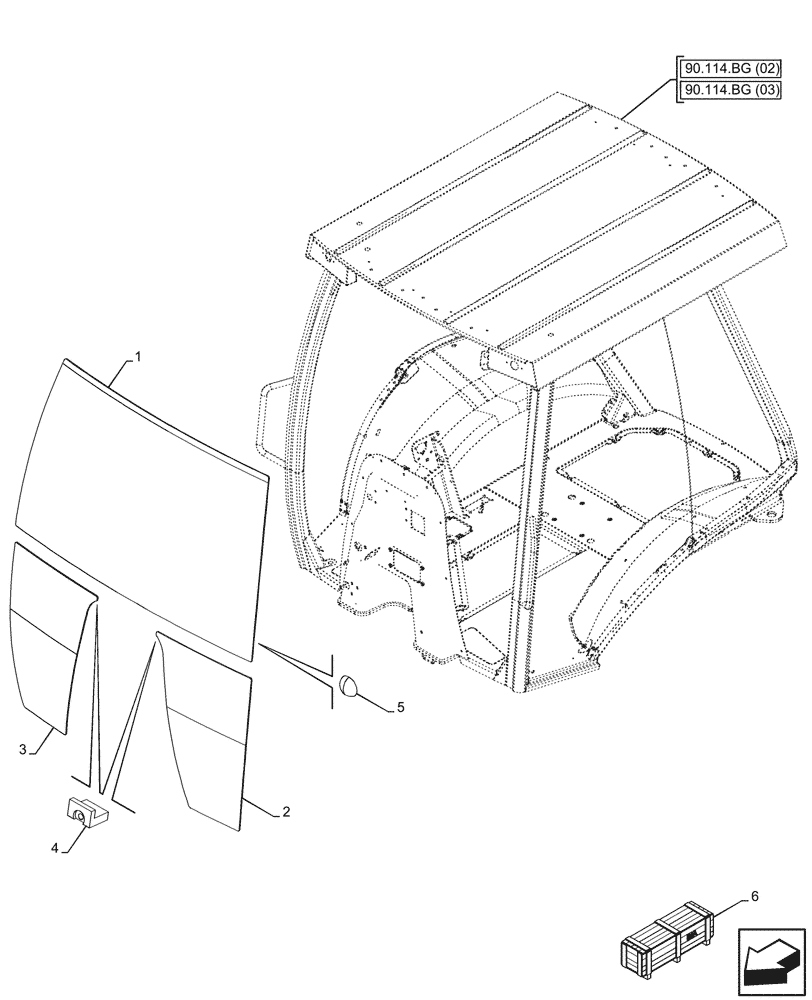

Запчасти Case 580SN WT (90.114.BG[02]) - VAR - 423000 - CANOPY, WINDSHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84246306

GLASS

1шт.

2

84246307

CAB GLASS ASSY

1шт.

3

84246308

CAB GLASS ASSY

1шт.

4

279482A1

CLAMP

2шт.

5

391827A1

SPACER,11.1mm D

18шт.

6

47605397

CONSTRUCTION DIA

Canopy Conversion Narrow, Incl 1 - 5

1шт.

Valid for 580N, 580SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47605399

CONSTRUCTION DIA

Canopy Conversion Wide, Incl 1 - 5

1шт.

Valid for 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

84275492

CONSTRUCTION DIA

Canopy ASM Deluxe Wide, Incl 1 - 5

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
