Запчасти Case 580SN WT (90.110.BD[01]) - VAR - 423000 - CANOPY, FLOOR MAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

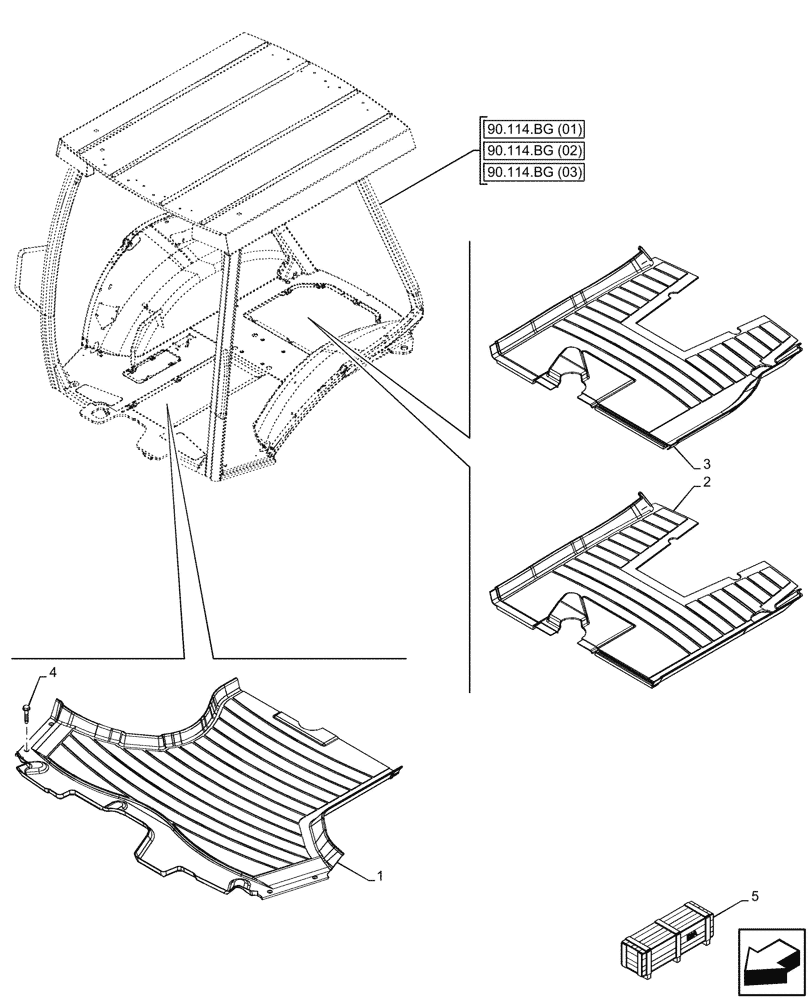

Схема запчастей Case 580SN WT - (90.110.BD[01]) - VAR - 423000 - CANOPY, FLOOR MAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.114.bg (03)
4
5
3
2
1
90.114.bg (01)
90.114.bg (02)

Артикул

Название

Примечание

Количество

1

391625A2

FLOOR MAT

Front, Wide

1шт.

1

390551A2

FLOOR MAT

Front, Narrow

1шт.

2

86983325

FLOOR MAT

Mechanical - Rear, Narrow

1шт.

3

86993773

FLOOR MAT

Mechanical - Rear, Wide

1шт.

4

86545826

SELF-TAP SCREW,HWH, #10 - 16 x 1"

4шт.

5

47605397

CONSTRUCTION DIA

Canopy Conversion Narrow, Incl 1, 2

1шт.

Valid for 580N, 580SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47605399

CONSTRUCTION DIA

Canopy Conversion Wide, Incl 1, 3

1шт.

Valid for 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 11
