Запчасти Case 580SN WT (10.216.BA[02]) - FUEL TANK, LINES (10) - ENGINE

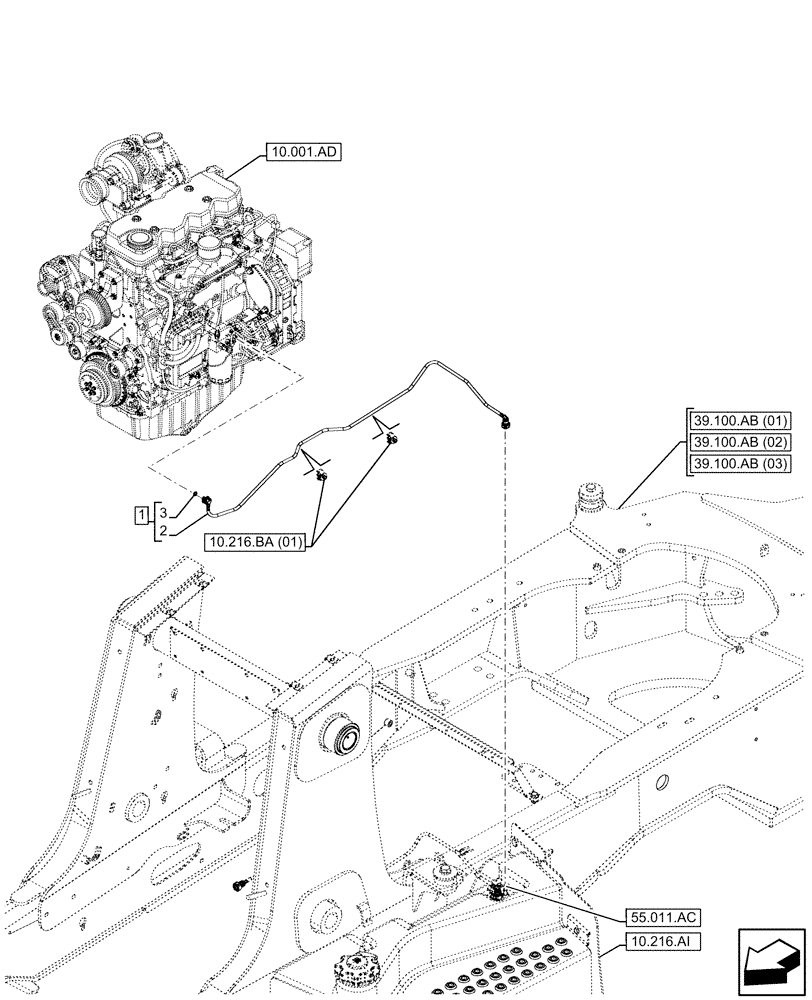

Схема запчастей Case 580SN WT - (10.216.BA[02]) - FUEL TANK, LINES (10) - ENGINE
10.216.ba (01)
1
2
3
39.100.ab (03)
39.100.ab (02)
10.001.ad
39.100.ab (01)
55.011.ac
10.216.ai

Артикул

Название

Примечание

Количество

1

84394620

LINE

Fuel Return, Engine to Fuel Tank, ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Fuel Return, Incl in 1

1шт.

3

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

1шт.

Выбрано товаров: 3
