Запчасти Case 580SN WT (10.216.AI ) - FUEL TANK (10) - ENGINE

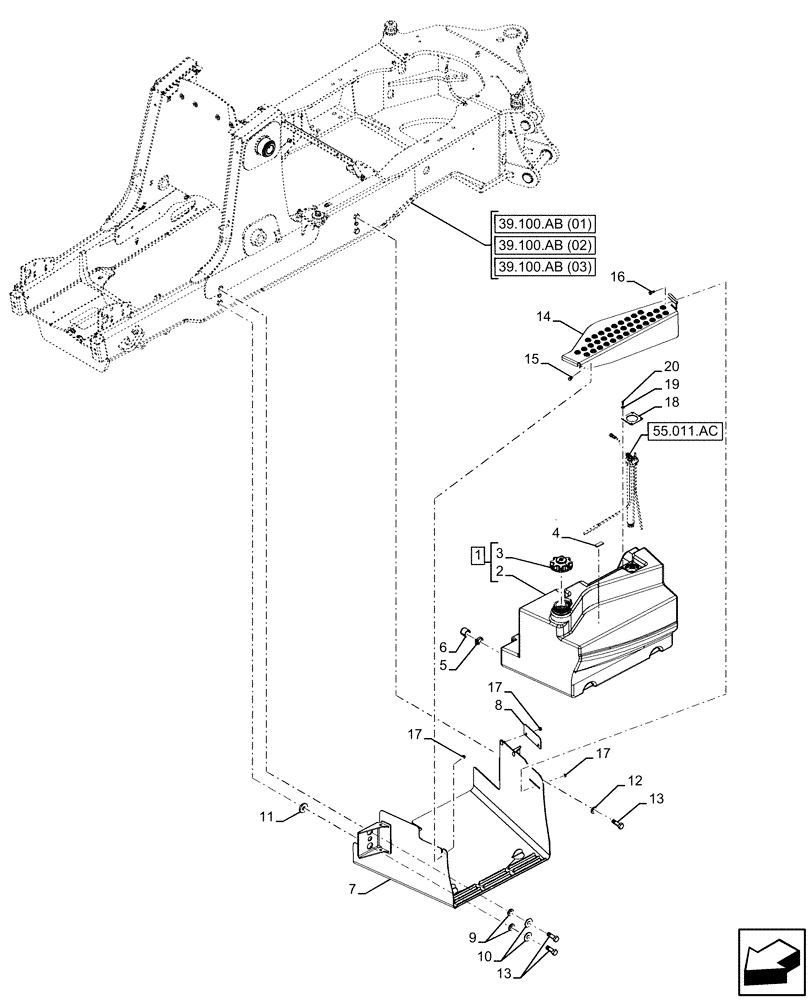

Схема запчастей Case 580SN WT - (10.216.AI ) - FUEL TANK (10) - ENGINE
55.011.ac
6
3
9
11
18
8
13
13
4
1
20
17
10
17
19
2
14
7
5
15
17
12
16
39.100.ab (03)
39.100.ab (01)
39.100.ab (02)

Артикул

Название

Примечание

Количество

1

84513235

FUEL TANK

42 Gallon, ASSY, Incl 2, 3

1шт.

2

84512583

FUEL TANK

Plastic

1шт.

3

84293447

CAP,128.7mm D

Fuel, Vented

1шт.

4

414092A1

SEALING STRIP,100mm

1шт.

5

82012726

HOSE CLAMP,38mm - 50mm, Worm Gear

1шт.

6

47681952

PLUG,Female

Fuel Tank Drain

1шт.

7

47396875

PLATE

Fuel Tank, Power Tan

1шт.

8

84276394

PLATE

Mud Guard, Power Tan

1шт.

9

185926A1

SPACER,21mm x 40mm x 6.6mm Th

Fuel Tank

2шт.

10

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

2шт.

11

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

Fuel Tank

1шт.

12

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

2шт.

13

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

4шт.

14

47381142

PLATE

Fuel Tank, Cover, Power Tan

1шт.

15

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

18

84415880

RING,64mm OD, 90mm x 90mm L

Fuel Tank Sender

1шт.

19

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

20

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

Выбрано товаров: 20
