Запчасти Case 580SN WT (84.100.AQ) - VAR - 423066 - BUCKET, UNIVERSAL 12INCH/305MM, PIN (84) - BOOMS, DIPPERS & BUCKETS

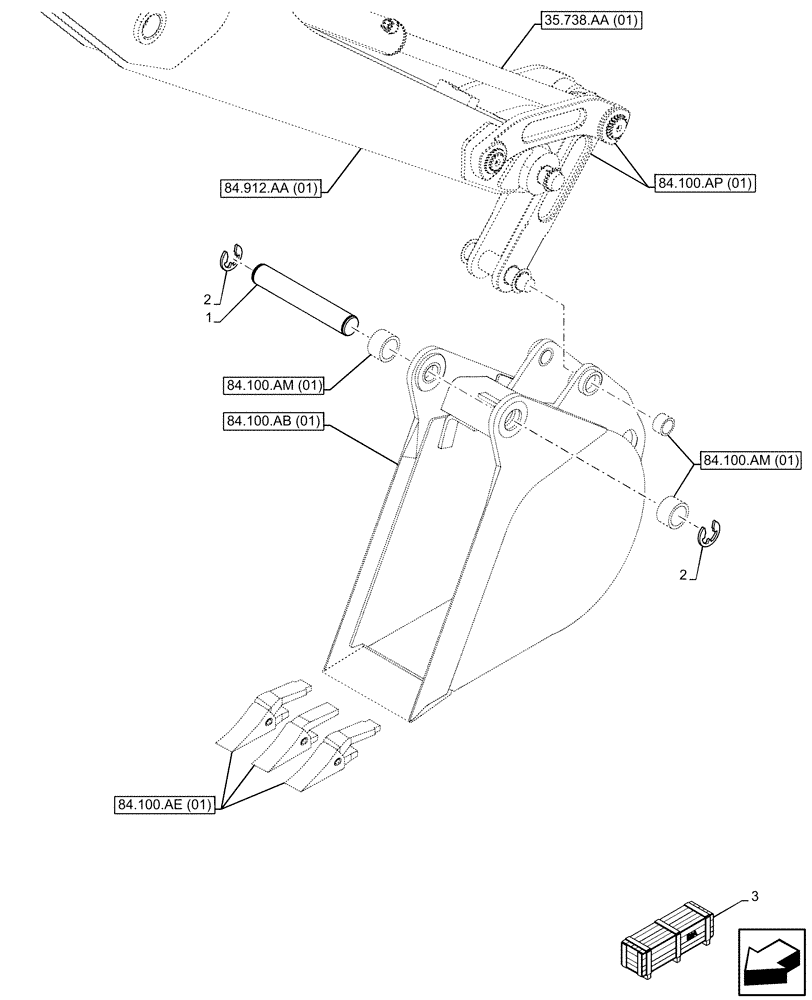

Схема запчастей Case 580SN WT - (84.100.AQ) - VAR - 423066 - BUCKET, UNIVERSAL 12INCH/305MM, PIN (84) - BOOMS, DIPPERS & BUCKETS
35.738.aa (01)
2
3
1
2
84.100.ap (01)
84.100.ae (01)
84.100.am (01)
84.100.am (01)
84.100.ab (01)
84.912.aa (01)

Артикул

Название

Примечание

Количество

1

84409739

PIN,55mm OD x 340.8mm L

1шт.

2

84233536

RING,55mm ID, Ext

2шт.

3

84467272

BUCKET

Bucket, 12 Inch Universal, Incl 1, 2

1шт.

Valid for 580N, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 5
