Запчасти Case 580SN WT (10.202.AB) - AIR CLEANER (10) - ENGINE

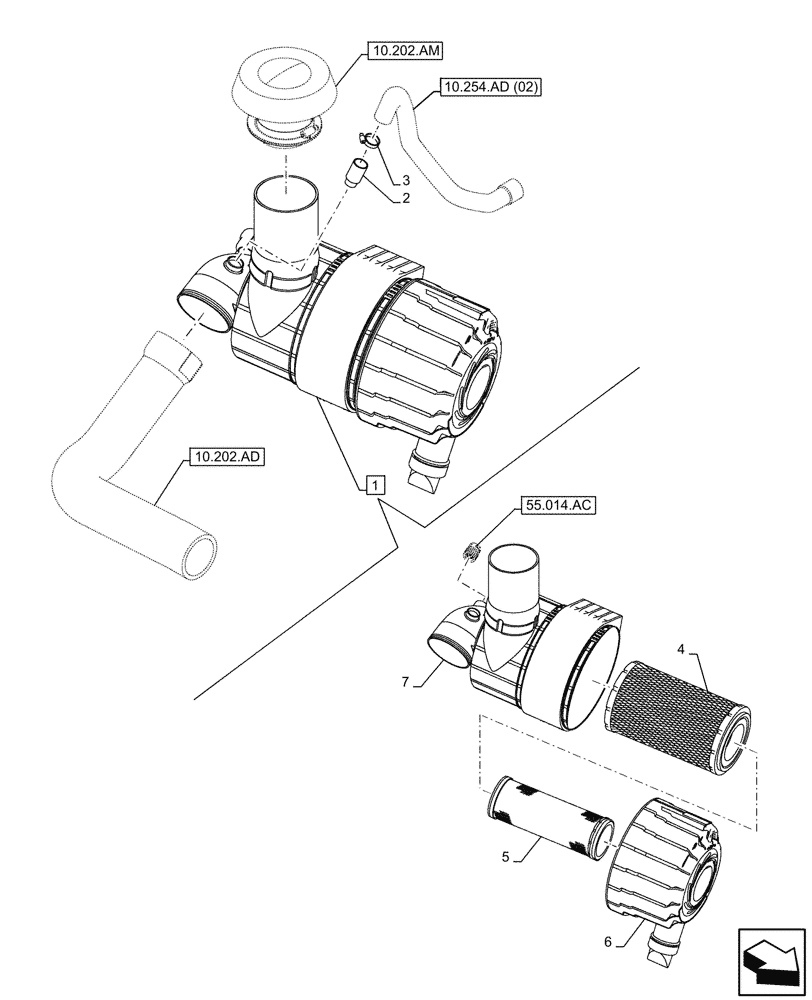

Схема запчастей Case 580SN WT - (10.202.AB) - AIR CLEANER (10) - ENGINE
10.202.ad
3
5
2
6
7
4
1
10.254.ad (02)
55.014.ac
10.202.am

Артикул

Название

Примечание

Количество

1

84535708

AIR CLEANER

ASSY, Incl 4 - 7

1шт.

See Air Cleaner Components also in Figure 55.014.AC

1шт.

2

L17985

FITTING,3/8" - 18 NPT

1шт.

3

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

4

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Primary

1шт.

5

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Secondary

1шт.

6

NSS

NOT SOLD SEPARAT

Cover Assembly, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Body Assembly, Incl in 1

1шт.

Выбрано товаров: 8
