Запчасти Case 580SN WT (84.100.AE[06]) - VAR - 423072 - BUCKET, HIGH CAPACITY 24INCH/610MM, TEETH (84) - BOOMS, DIPPERS & BUCKETS

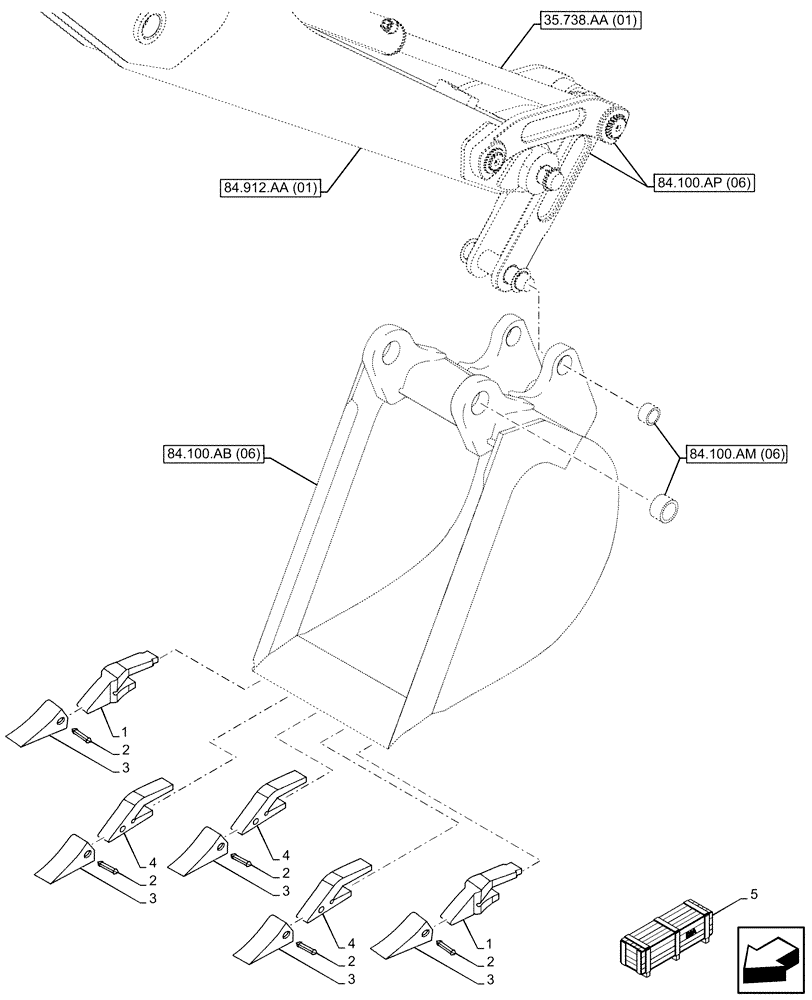

Схема запчастей Case 580SN WT - (84.100.AE[06]) - VAR - 423072 - BUCKET, HIGH CAPACITY 24INCH/610MM, TEETH (84) - BOOMS, DIPPERS & BUCKETS
35.738.aa (01)
2
4
4
5
3
3
4
2
2
1
2
3
2
3
3
1
84.100.am (06)
84.100.ab (06)
84.912.aa (01)
84.100.ap (06)

Артикул

Название

Примечание

Количество

1

84424392

BUCKET TOOTH SHANK

Outer

2шт.

2

84318739

BUCKET TOOTH KEY

5шт.

3

84318713

BUCKET TOOTH

5шт.

4

84318729

BUCKET TOOTH SHANK

Center

3шт.

5

84467277

BUCKET

Bucket, 24 Inch HI-Capacity, Incl 1 - 4

1шт.

Valid for 580N, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 7
