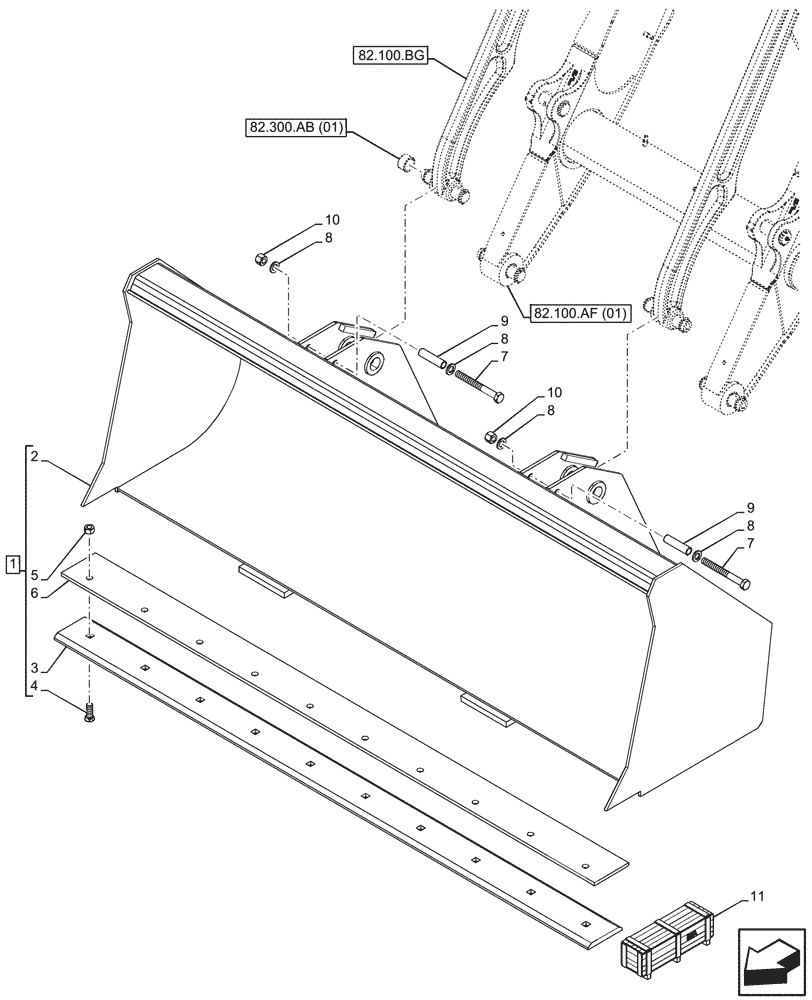

Запчасти Case 580SN WT (82.300.AN[01]) - VAR - 747539 - BUCKET, 1.25 YD - 93INCH/2362MM LL (82) - FRONT LOADER & BUCKET

1

84422637

BUCKET,93 Inch W/ Cutting Edge

ASSY, 1.25YD 93Inch/2362mm LL, Incl 2 - 10

1шт.

See Bucket Components also in Figure 82.300.AB (01)

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

87375240

CUTTING EDGE,Bolt On, 10 Holes, 19mm W x 2392mm L

1шт.

4

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

10шт.

5

29-1012

NUT,3/4"-10, G8

10шт.

6

134844A1

CUTTING EDGE,Bolt On, 10 Holes, 12mm W x 2389mm L

1шт.

7

84334022

BOLT,Hex, M20 x 2.5 x 180mm, Cl 10.9

2шт.

8

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

4шт.

9

84235628

SPACER,21mm ID x 25mm OD x 100mm L

2шт.

10

412180

NUT,M20 x 2.5, Cl 8

2шт.

11

84482604

BUCKET

Bucket 93 Inch W/ Cutting Edge, Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
