Запчасти Case 580SN WT (05.100.04[01]) - MAINTENANCE PARTS - FILTERS (05) - SERVICE & MAINTENANCE

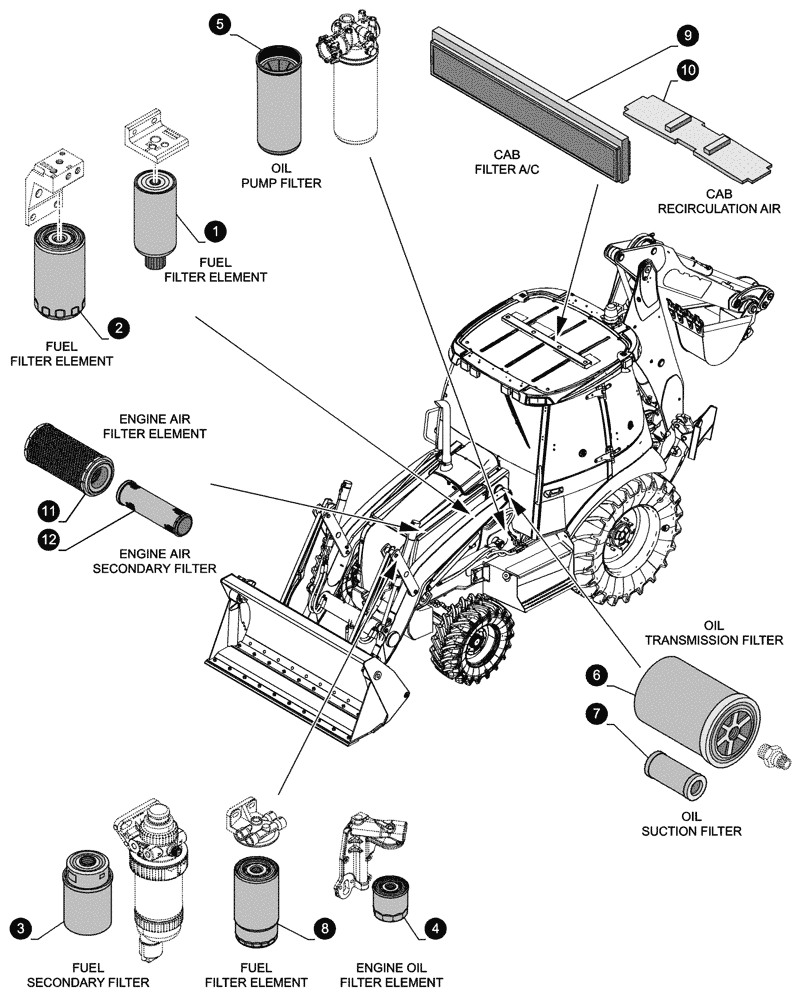

Схема запчастей Case 580SN WT - (05.100.04[01]) - MAINTENANCE PARTS - FILTERS (05) - SERVICE & MAINTENANCE
9
1
3
6
4
12
10
5
7
11
2
8

Артикул

Название

Примечание

Количество

1

84209753

FUEL FILTER,93.5mm OD x 199mm L

Element, Every 500 hours

1шт.

Valid with 580N-BACKHOE LOADER - TIER 3 NRC Models

1шт.

2

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Secondary, Every 500 hours

1шт.

Valid with 580SN-BACKHOE LOADER - TIER 3 NRC, 580SN WT-BACKHOE LOADER, WIDE TRACK - TIER 3 NRC, 590SN-BACKHOE LOADER - TIER 3 NRC Models

1шт.

3

84559022

FUEL FILTER,20.6mm ID x 85mm OD x 154.3mm L, W/ Water Drain

Secondary, Every 500 hours

1шт.

4

4897898

ENGINE OIL FILTER,93.5mm OD x 173mm L, M27, 10 Microns

Cartridge Oil Filter, Every 500 hours

1шт.

5

84255607

HYDRAULIC OIL FILTER,Spin-on, M87 x 2.5, 98.8mm OD x 239.8mm L

Tank Return, Every 1000 hours

1шт.

6

84475948

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Hydraulic Oil, Every 1000 hours

1шт.

7

278534A1

FILTER SCREEN

Suction Oil

1шт.

8

87803445

FUEL FILTER,79.2mm OD x 4.3" L, 30 Microns

w/Water separator, Every 500 hours

1шт.

Valid with 580N-BACKHOE LOADER - TIER 3 NRC Models

1шт.

8

47357911

FUEL FILTER,88.1mm OD x 195.7mm L, 30 Microns

w/Water separator, Every 500 hours

1шт.

Valid with 580SN-BACKHOE LOADER - TIER 3 NRC, 580SN WT-BACKHOE LOADER, WIDE TRACK - TIER 3 NRC, 590SN-BACKHOE LOADER - TIER 3 NRC Models

1шт.

9

360260A2

CAB FILTER,A/C, 740mm L x 140.4mm W x 50mm Thk, Pleatloc

Pleatloc Fresh Air, Recirculation

1шт.

10

377594A5

FILTER

Recirculation Air

1шт.

11

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Engine Primary, Every 1000 hours

1шт.

12

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Engine Secondary, Every 1000 hours

1шт.

Выбрано товаров: 17
