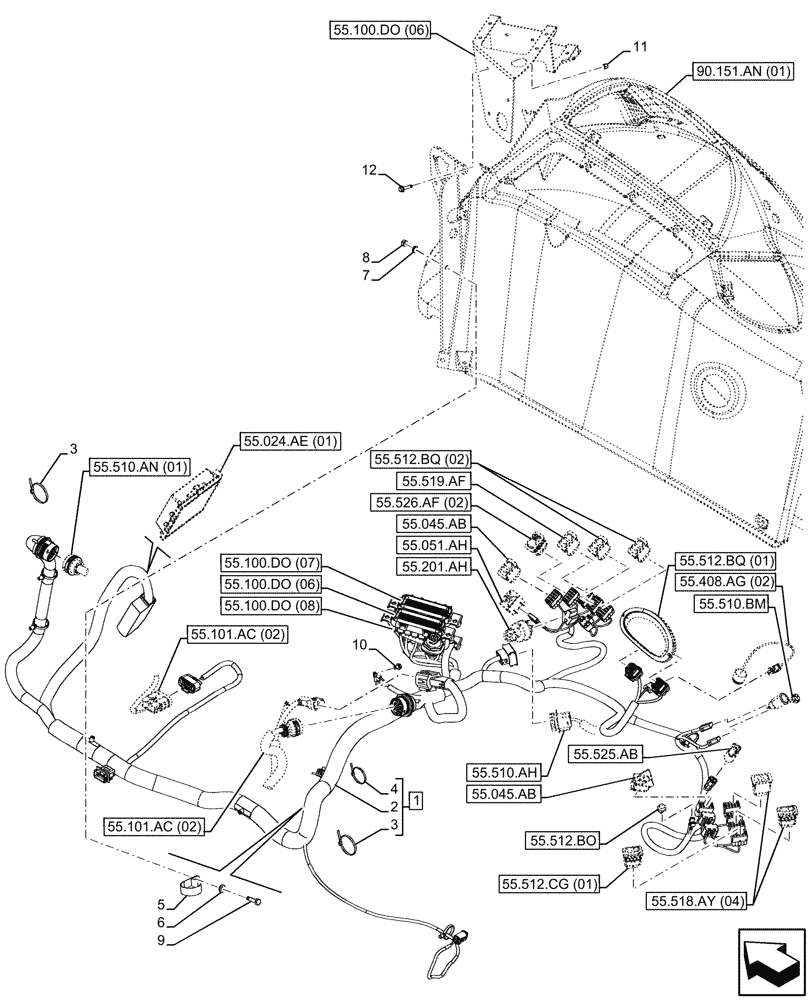

Запчасти Case 580SN WT (55.510.AG[02]) - VAR - 423060, 423061, 423062 - SIDE PANEL, RH, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

84292425

HARNESS

Side Console, ASSY, Incl 2, 3 (Qty 3), 4

1шт.

See Side Console Wire Harness Components also in Figure 55.100.DO 06, 55.100.DO 07, 55.100.DO 08, 90.108.AA 03

1шт.

2

84292424

WIRE HARNESS

Side Console

1шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

4

84292402

CABLE TIE,203mm L

3шт.

5

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1шт.

6

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

7

892-11008

LOCK WASHER,8mm ID

1шт.

8

824-1408

NUT,M8 x 1.25, Cl 10

1шт.

9

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

10

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

11

832-10406

NUT,M6 x 1, Cl 8

2шт.

12

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.
