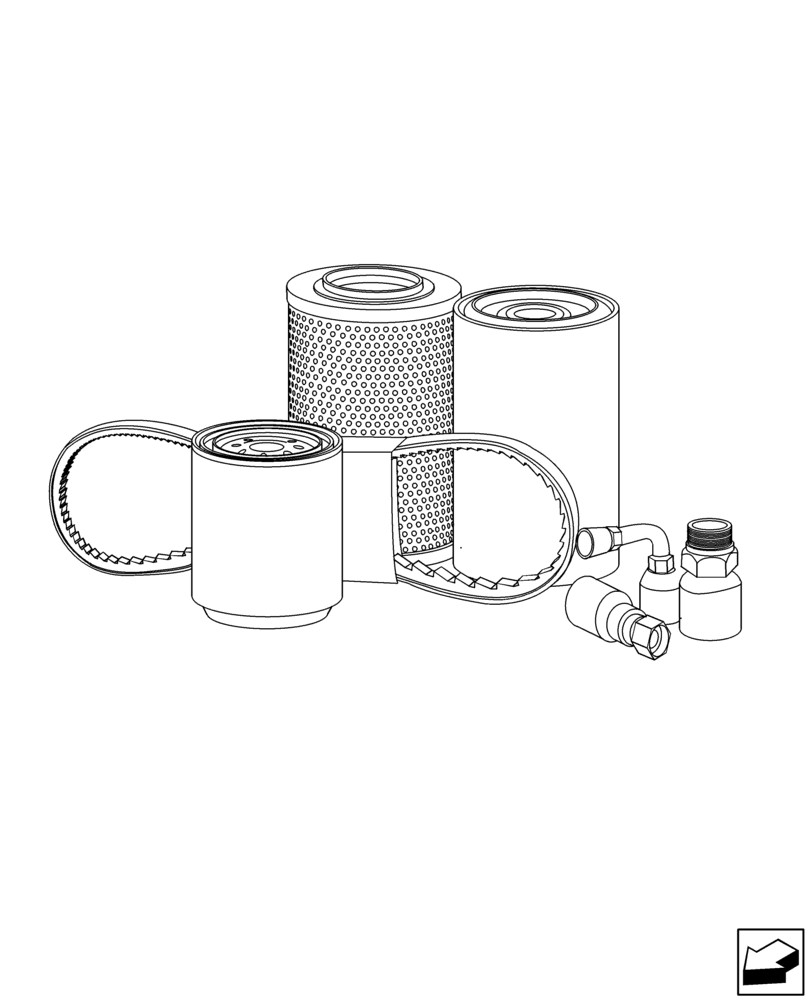

Запчасти Case 580SN WT (05.100.01) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE

1

84526251

FUEL FILTER

Spin-on, on Engine

1шт.

Valid for 580N Model only

1шт.

2

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Spin-on, on Engine

1шт.

Valid for 580SN, 580SN WT, 590SN Models only

1шт.

3

84565926

FUEL FILTER,20.6mm ID x 85mm OD x 154.3mm L, W/ Water Drain

W/ Water Separator

1шт.

Valid for 580N Model only

1шт.

4

47357911

FUEL FILTER,88.1mm OD x 195.7mm L, 30 Microns

W/ Water Separator

1шт.

Valid for 580SN, 580SN WT, 590SN Models only

1шт.

5

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Primary

1шт.

6

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Secondary

1шт.

7

360260A2

CAB FILTER,A/C, 740mm L x 140.4mm W x 50mm Thk, Pleatloc

Air, Heater

1шт.

8

377594A5

FILTER

Air, Cab, Recirculation

1шт.

9

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

1шт.

10

84255607

HYDRAULIC OIL FILTER,Spin-on, M87 x 2.5, 98.8mm OD x 239.8mm L

1шт.

11

47713922

FILTER STRAINER

On Hydraulic Oil Reservoir

1шт.

12

84475948

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Oil, Transmission

1шт.

13

278534A1

FILTER SCREEN

Oil, Transmission, Suction

1шт.

14

84338934

FILTER STRAINER

on Relief Valve for Heavy Lift Option

1шт.

Valid for 580SN, 580SN WT, 590SN Models only

1шт.

15

84278184

BELT,28.28mm W x 1470mm L, 8 Ribs

Main, W/ Standard Fan

1шт.

Valid for 580N, 580SN, 580SN WT Models only

1шт.

16

99466947

BELT

Main, W/ Standard Fan

1шт.

Valid for 590SN Model only

1шт.

17

84278183

BELT,28.28mm W x 1440mm L, 8 Ribs

Main, W/ Viscous Fan

1шт.

18

87393292

V-BELT,13.5 mm W x 1206.5mm L

A/C Compressor

1шт.

Valid for 580N Model only

1шт.

19

87548076

BELT,0.55" W x 47.95" L, 4 Ribs

A/C Compressor

1шт.

Valid for 580SN, 580SN WT, 590SN Models only

1шт.
