Запчасти Case 580SN WT (41.216.AN[02]) - FRONT AXLE, STEERING CYLINDER (41) - STEERING

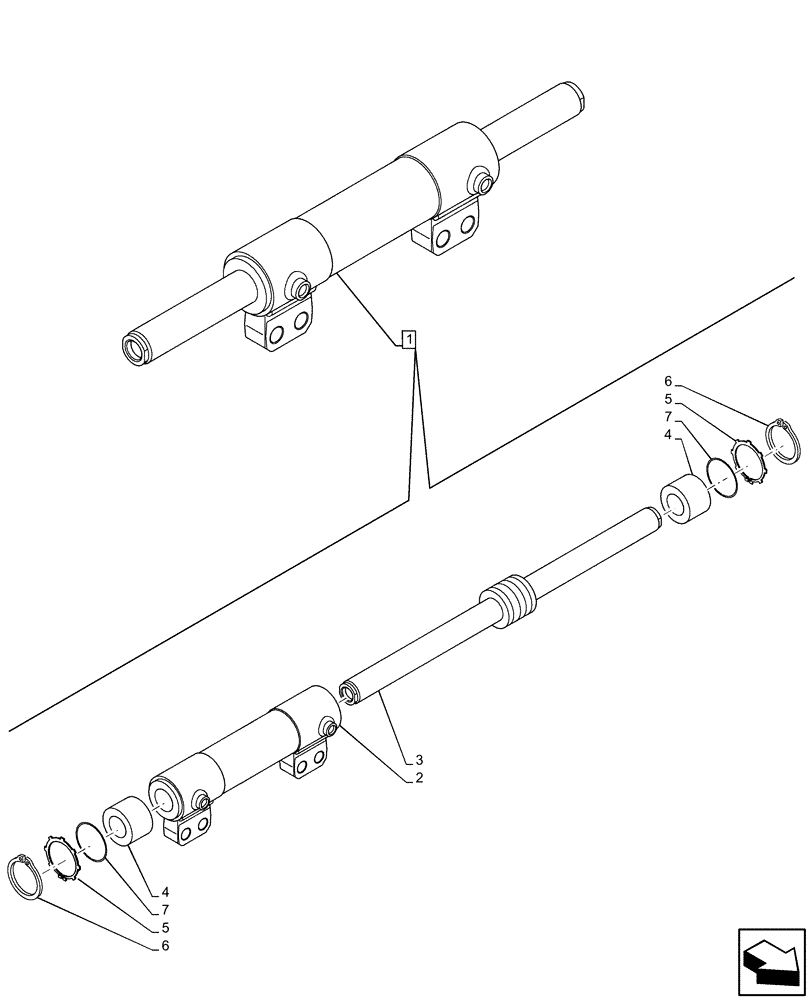

Схема запчастей Case 580SN WT - (41.216.AN[02]) - FRONT AXLE, STEERING CYLINDER (41) - STEERING
4
7
5
4
6
5
3
2
1
7
6

Артикул

Название

Примечание

Количество

1

84264406

STEERING CYLINDER,Double Acting, 40mm Rod, 70mm Bore, 249mm Stroke

ASSY, Incl 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

Sleeve Protective Steering, Incl in 1

1шт.

3

84276953

ROD

Piston Steering Cylinder

1шт.

4

84276994

CYLINDER END CAP

Steering

2шт.

5

84276996

SNAP RING,70mm OD x 2mm Thk

Wire 70 x 2

2шт.

6

84276995

CIRCLIP,70mm Special

External

2шт.

7

84331720

SEAL KIT

Steering Cylinder

1шт.

Выбрано товаров: 7
