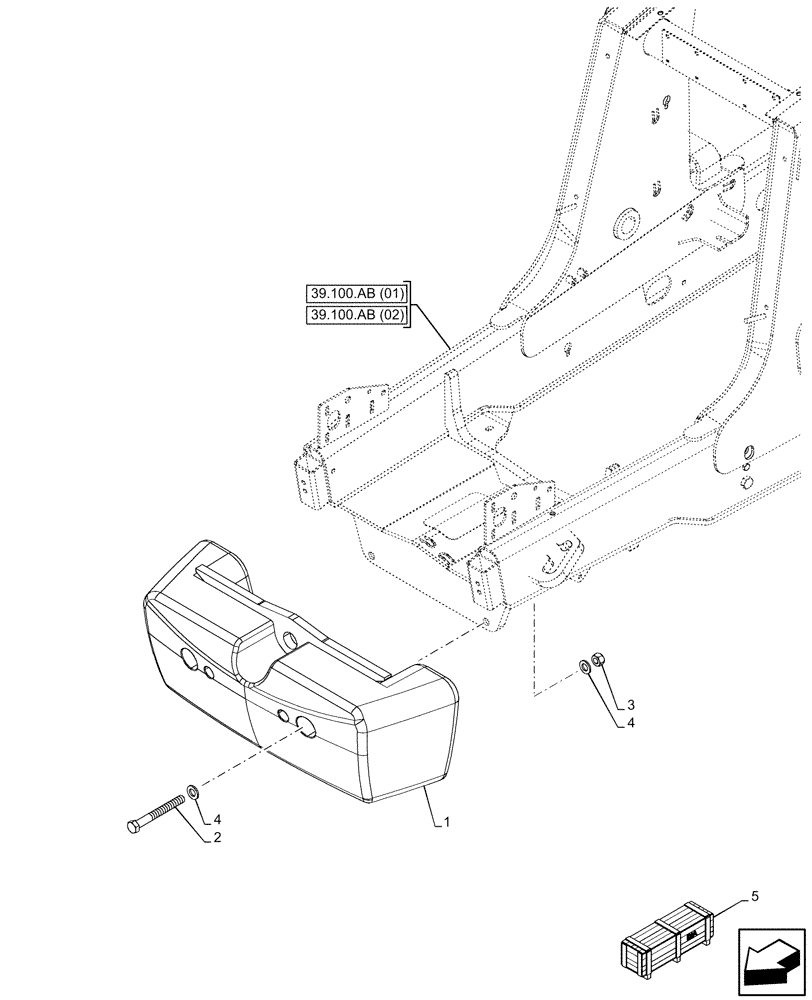

Запчасти Case 580SN WT (39.140.AM[02]) - VAR - 423010, 423047 - COUNTERWEIGHT, 900 LBS, FRONT (39) - FRAMES AND BALLASTING

1

84254688

COUNTERWEIGHT,500 Kg / 1100 Lb

Front, 1100 Lb

1шт.

2

827-20170

BOLT,Hex, M20 x 2.5 x 170mm, Cl 10.9

2шт.

3

829-1420

NUT,M20, Cl 10

2шт.

4

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

4шт.

5

47488979

CONSTRUCTION DIA

Heavy Counterweight 1100 Lb, Incl 1 - 4

1шт.

Valid for 580N, 580SN, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

84275784

CONSTRUCTION DIA

Standard Counterweight, 700 Lb, Incl 1 - 4

1шт.

Valid for 580N, 580SN, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
