Запчасти Case 580SN WT (35.106.AD[01]) - VARIABLE DISPLACEMENT HYDRAULIC PUMP (W/ POWER LIFT, W/O COLD START) (35) - HYDRAULIC SYSTEMS

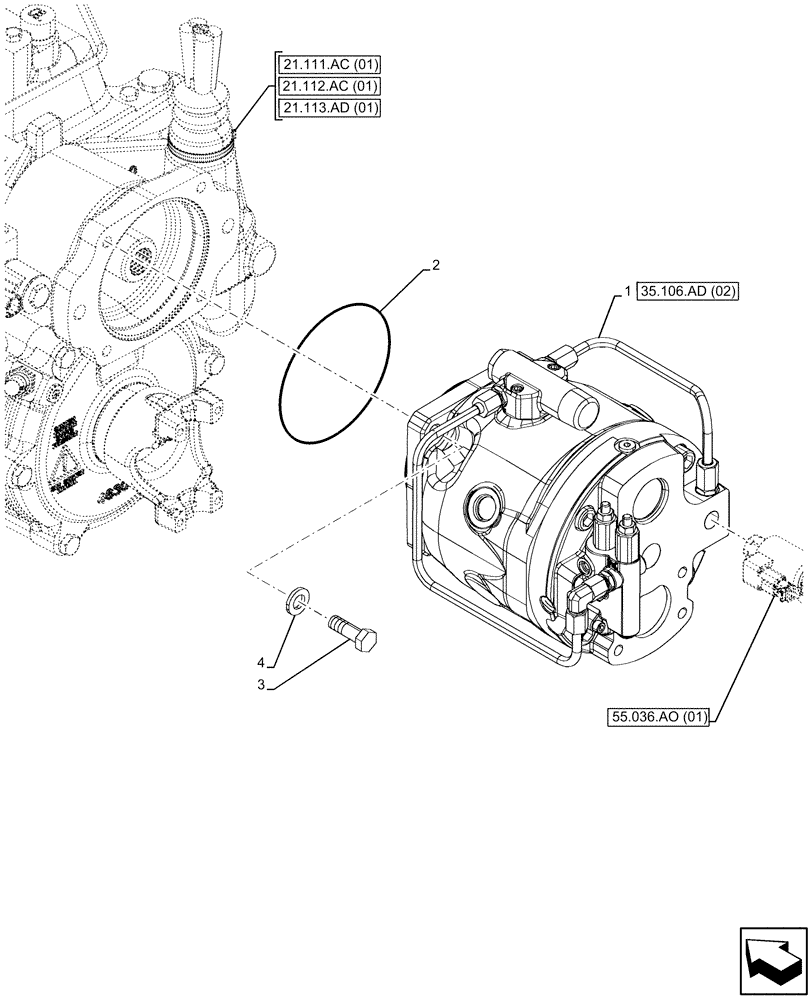

Схема запчастей Case 580SN WT - (35.106.AD[01]) - VARIABLE DISPLACEMENT HYDRAULIC PUMP (W/ POWER LIFT, W/O COLD START) (35) - HYDRAULIC SYSTEMS
21.111.ac (01)
3
1
2
4
55.036.ao (01)
35.106.ad (02)
21.112.ac (01)
21.113.ad (01)

Артикул

Название

Примечание

Количество

1

84218971

HYDRAULIC PUMP,74 CC

ASSY

1шт.

Load Sense (LS)

1шт.

1

84218971R

REMAN-HYD PUMP

Load Sense (LS)

1шт.

1

84218971C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

175156

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

1шт.

3

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

4

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

Выбрано товаров: 7
